Showing 49–64 of 128 results

•

  M2x0.4 GREEN F/LESS 371 HSS-EV BRT TAP

  HSS ‘Green Ring’ Fluteless Taps

  Lubrication grooves are a feature of all taps of M3.0 and over. Manufactured to DIN 371/376.
  Fluteless – HSS-EV Bright Finish
  For through and blind holes.
  Taper lead to DIN form B
  (3.5 x P to 5.5 x P). Tapping tolerance to 6H.
  ISO Metric Coarse

  Read more
•

  M2x0.4 GREEN F/LESS 371 HSS-EV TiN TAP

  HSS ‘Green Ring’ Fluteless Taps

  Lubrication grooves are a feature of all taps of M3.0 and over. Manufactured to DIN 371/376.
  Fluteless – HSS-EV (TiN Coated)
  For through and blind holes.
  Taper lead to DIN form B
  (3.5 x P to 5.5 x P). Tapping tolerance to 6H.
  ISO Metric Coarse

  Read more
•

  M2x0.4 GREEN SP/FL 371 HSS-EV NIT TAP

  HSS ‘Green Ring’ Taps

  Manufactured to DIN 371/376
  Suitable for the following Material Groups
  Spiral Flute – HSS-EV Nitride Finish
  For blind holes. Taper lead to DIN form C
  (2 x P to 3 x P). Tapping tolerance to 6H.

  Read more
•

  M2x0.4 GREEN SP/PT 371 HSS-EV NIT TAP

  HSS ‘Green Ring’ Taps

  Manufactured to DIN 371/376
  Suitable for the following Material Groups
  Spiral Point/Gun Nose – HSS-EV Nitride Finish
  For through holes. Taper lead to DIN form B
  (3.5 x P to 5.5 x P).
  Tapping tolerance to 6HX.
  ISO Metric Coarse

  Read more
•

  M2x0.4 RED RING SP/FL DIN 371 HSS-EV OX TAP

  Spiral Flute – HSS-EV

  Oxidised Finish
  For blind holes.
  Taper lead to DIN form C (3 x P).
  Tapping tolerance:
  spiral flute to 6H.
  ISO Metric Coarse
  Helix angle 40°. Tapping depth 2.5 x D.

  Read more
•

  M2x0.4 RED RING SP/PT DIN 371 HSS-EV BRT TAP

  HSS ‘Red Ring’ Taps

  Manufactured to DIN 371/376
  Suitable for the following Material Groups
  Spiral Point/Gun Nose –
  HSS-Co Bright Finish
  For through holes.
  Taper lead to DIN form B
  (3.5 x P to 5.5 x P).
  Tapping tolerance to 6HX.
  ISO Metric Coarse

  Read more
•

  M2x0.4 WHITE 371 HSS-EV NIT THROUGH TAP

  HSS ‘White Ring’ Taps

  Manufactured to DIN 371/376
  Suitable for the following Material Groups
  Straight Flute – HSS-EV Nitride Finish
  For through holes. Taper lead to
  DIN form D (taper) (3.5 x P to 5 x P).
  Tapping tolerance to 6HX.

  Read more
•

  M2x0.4 WHITE ST 371 HSS-EV NIT BLIND TAP

  HSS ‘White Ring’ Taps

  Straight Flute – HSS-EV Nitride Finish
  For blind holes. Plug/bottoming lead to
  DIN form C (2 x P to 3 x P).
  Tapping tolerance to 6HX.

  Read more
•

  M2x0.4 YELLOW SP/FL 371 HSS-EV OX TAP

  HSS-EV ‘Yellow Ring’ Taps

  Spiral Flute – HSS-EV Oxidised Finish
  For blind holes.
  Taper lead to DIN form C (3 x P).
  Tapping tolerance:
  Spiral flute to 6H.

  Suitable for the following Material Groups;
  1.1
  Mild soft steel & free machining non-alloy low carbon steel.
  1.2
  Non-alloy case hardening, structural & low to medium carbon steel.
  1.3
  Non-alloy, plain and medium carbon steel and castings

  Read more
•

  M2x0.40 YELLOW SP/PT 371 HSS-EV OX TAP

  HSS-EV ‘Yellow Ring’ Taps

  Spiral Point/Gun Nose –
  HSS-EV Oxidised Finish
  For through holes.
  Taper lead to DIN form B.
  (3.5 x P to 5.5 x P).
  Tapping tolerance to 6H.

  Suitable for the following Material Groups;
  1.1
  Mild soft steel & free machining non-alloy low carbon steel.
  1.2
  Non-alloy case hardening, structural & low to medium carbon steel.
  1.3
  Non-alloy, plain and medium carbon steel and castings

  Read more
•

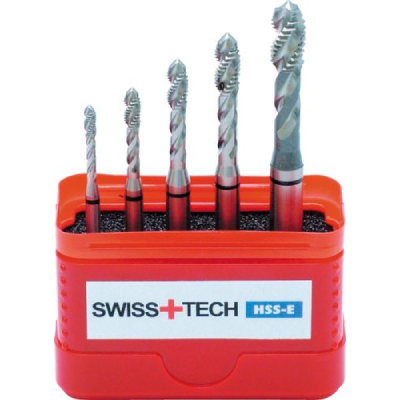

  M3-M8 HSS-COBALT BLACK RING SP/FL DIN 371 TAP SET

  HSS-E ‘Black Ring’ M3 – M8 Spiral Flute

  5 Piece Tap Set
  ‘Black Ring’ machine taps for general tapping applications suitable for steels, low alloy steels, stainless steels and non-ferrous materials.Manufactured to DIN371/376. Tapping tolerance to 6H.

  Contents:
  Pitch size: M3 x 0.5mm. Thread length: 2.5mm.
  Pitch size: M4 x 0.7mm. Thread length: 3.3mm.
  Pitch size: M5 x 0.8mm. Thread length: 4.2mm.
  Pitch size: M6 x 1.0mm. Thread length: 5.0mm.
  Pitch size: M8 x 1.25mm. Thread length: 6.8mm.

  Read more
•

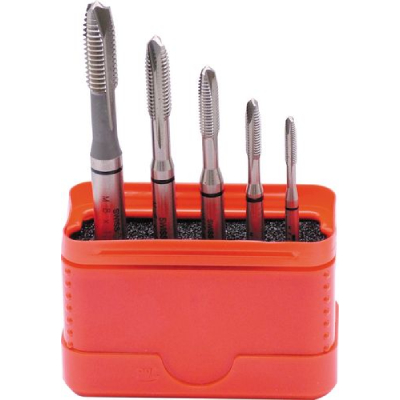

  M3-M8 HSS-COBALT BLACK RING SP/PT DIN 371 TAP SET

  HSS-E ‘Black Ring’ M3 – M8 Spiral Point/Gun Nose

  5 Piece Tap Set
  ‘Black Ring’ machine taps for general tapping applications suitable for steels, low alloy steels, stainless steels and non-ferrous materials. Manufactured to DIN371/376. Tapping tolerance to 6H.

  Contents:
  Pitch size: M3 x 0.5mm. Thread length: 2.5mm.
  Pitch size: M4 x 0.7mm. Thread length: 3.3mm.
  Pitch size: M5 x 0.8mm. Thread length: 4.2mm.
  Pitch size: M6 x 1.0mm. Thread length: 5.0mm.
  Pitch size: M8 x 1.25mm. Thread length: 6.8mm.

  Read more
•

  M3.5×0.6 GREEN SP/FL 371 HSS-EV NIT TAP

  HSS ‘Green Ring’ Taps

  Manufactured to DIN 371/376
  Suitable for the following Material Groups
  Spiral Flute – HSS-EV Nitride Finish
  For blind holes. Taper lead to DIN form C
  (2 x P to 3 x P). Tapping tolerance to 6H.

  Read more
•

  M3.5×0.6 YELLOW SP/FL 371 HSS-EV OX TAP

  HSS-EV ‘Yellow Ring’ Taps

  Spiral Flute – HSS-EV Oxidised Finish
  For blind holes.
  Taper lead to DIN form C (3 x P).
  Tapping tolerance:
  Spiral flute to 6H.

  Suitable for the following Material Groups;
  1.1
  Mild soft steel & free machining non-alloy low carbon steel.
  1.2
  Non-alloy case hardening, structural & low to medium carbon steel.
  1.3
  Non-alloy, plain and medium carbon steel and castings

  Read more
•

  M3x0.5 BLUE SP/FT 371 HSS-EV OX TAP

  HSS ‘Blue Ring’ Taps

  Manufactured to DIN 371/376 Suitable for the following Material Groups
  Note: Fluteless taps may also be used on stainless steel.
  See ‘Green Ring’ Fluteless on page 192.
  Spiral Flute (BLT) –
  HSS-EV Oxidised Finish
  For deep blind holes.
  Taper lead to DIN form C
  (2 x P to 3 x P).
  Tapping tolerance to 6H.
  ‘Biteless Taper’ ISO Metric Coarse
  Helix angle 45°

  Read more
•

  M3x0.5 BLUE SP/FT 371 HSS-EV OX TAP

  Spiral Flute (BLF) – HSS-EV Oxidised Finish

  For shorter blind holes. Taper lead to DIN form C (3 x P).
  Tapping tolerance to 6H.
  ‘Biteless Flat’ ISO Metric Coarse
  Helix angle 45°.

  Read more
