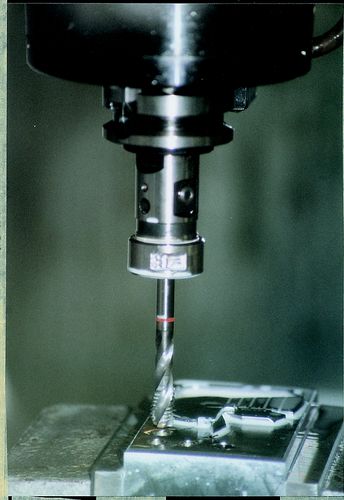

M2x0.4 RED RING SP/PT DIN 371 HSS-EV BRT TAP
HSS âRed Ringâ Taps
Manufactured to DIN 371/376
Suitable for the following Material Groups
Spiral Point/Gun Nose –
HSS-Co Bright Finish
For through holes.
Taper lead to DIN form B
(3.5 x P to 5.5 x P).
Tapping tolerance to 6HX.
ISO Metric Coarse
Out of stock
SKU : SWT1851003R
HSS âRed Ringâ Taps
Manufactured to DIN 371/376
Suitable for the following Material Groups
Spiral Point/Gun Nose –
HSS-Co Bright Finish
For through holes.
Taper lead to DIN form B
(3.5 x P to 5.5 x P).
Tapping tolerance to 6HX.
ISO Metric Coarse
Specification :
Brand : Swiss Tech
eCl@ss Code : 21010210
Overall Length (mm) : 45
Shank Diameter (mm) : 2.8
Size – Pitch (mm) : M2.0 x 0.40
Square A/F : 2.1
Thread Length (mm) : 8
UNSPSC Code : 27112806
Weight each : 4g
| Weight | 1 kg |
|---|
