Category: HSS-PM Production Taps

HSS-PM Production Taps

Showing 1–16 of 32 results

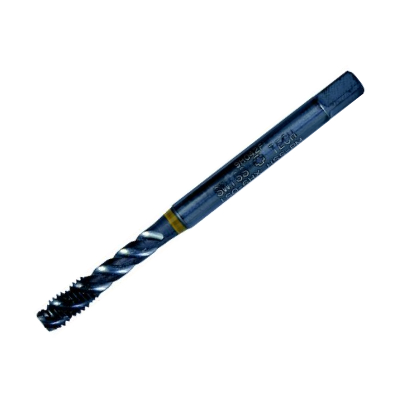

  • M10x1.5 OR. SP/FL 371 HSS-PM NIT+OX TAP

    HSS ‘Orange Ring’ Taps

    Spiral Flute – HSS-PM Nitride & Oxide Finish
    For blind holes. Taper lead to DIN form C.
    This tap has the special
    chamfer lead of (3 x P).
    Tapping tolerance: spiral flute to 6H.
    ISO Metric Coarse Helix angle 40°. Tapping depth 2.5 x D.

    Read more

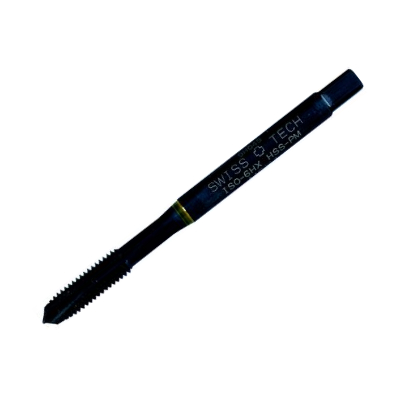

  • M10x1.5 OR. SP/PT 371 HSS-PM NIT+OX TAP

    HSS ‘Orange Ring’ Taps

    Spiral Point/Gun Nose –
    HSS-PM Nitride & Oxide Finish
    For through holes.
    Taper lead to DIN form B
    (3.5 x P to 5.5 x P).
    Tapping tolerance to 6HX.
    ISO Metric Coarse

    Suitable for the following Material Groups;
    4.3
    Titanium alloys of a hard and very hard to machine nature.
    5.1
    Heat resistant super alloys including iron based high temperature alloys.
    5.2
    Heat resistant super alloys, cobalt or nickel based hard to very hard to machine

    Read more

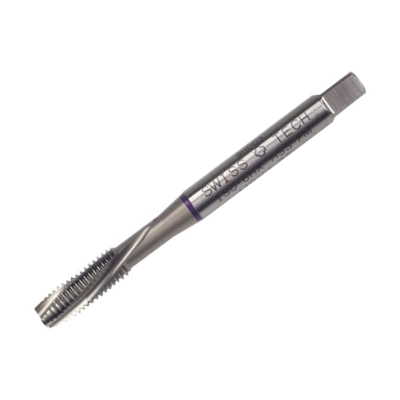

  • M10x1.5 PURPLE SP/FL 371 HSS-PM NIT TAP

    HSS ‘Purple Ring’ Taps

    Right Hand Cutting – Left Hand
    Spiral Flute – HSS-PM Nitride Finish
    For through holes. Left hand spiral.
    Taper lead to DIN form D (3.5 x P to 5 x P).
    Tapping tolerance to 6HX.
    ISO Metric Coarse Helix angle 15°.

    Read more

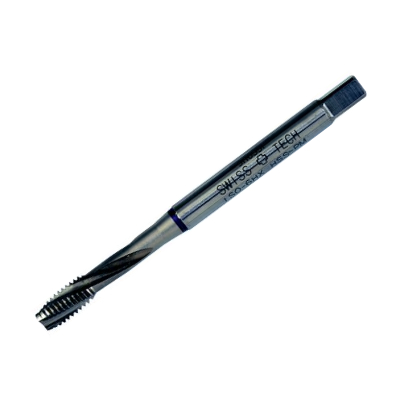

  • M10x1.5 PURPLE SP/FL 371 HSS-PM NIT TAP

    HSS ‘Purple Ring’ Taps

    Spiral Flute – HSS-PM Nitride Finish
    For blind holes. Taper lead to DIN form B
    (3 x P). Tapping tolerance to 6HX.
    ISO Metric Coarse Helix angle 15°. Tapping depth 2.5 x D.

    Read more
  • M12x1.75 OR. SP/FL 376 HSS-PM NIT+OX TAP

    HSS ‘Orange Ring’ Taps

    Spiral Flute – HSS-PM Nitride & Oxide Finish
    For blind holes. Taper lead to DIN form C.
    This tap has the special
    chamfer lead of (3 x P).
    Tapping tolerance: spiral flute to 6H.
    ISO Metric Coarse Helix angle 40°. Tapping depth 2.5 x D.

    Read more
  • M12x1.75 OR. SP/PT 376 HSS-PM NIT+OX TAP

    HSS ‘Orange Ring’ Taps

    Spiral Point/Gun Nose –
    HSS-PM Nitride & Oxide Finish
    For through holes.
    Taper lead to DIN form B
    (3.5 x P to 5.5 x P).
    Tapping tolerance to 6HX.
    ISO Metric Coarse

    Suitable for the following Material Groups;
    4.3
    Titanium alloys of a hard and very hard to machine nature.
    5.1
    Heat resistant super alloys including iron based high temperature alloys.
    5.2
    Heat resistant super alloys, cobalt or nickel based hard to very hard to machine

    Read more
  • M12x1.75 PURPLE SP/FL 376 HSS-PM NIT TAP

    HSS ‘Purple Ring’ Taps

    Right Hand Cutting – Left Hand
    Spiral Flute – HSS-PM Nitride Finish
    For through holes. Left hand spiral.
    Taper lead to DIN form D (3.5 x P to 5 x P).
    Tapping tolerance to 6HX.
    ISO Metric Coarse Helix angle 15°.

    Read more
  • M12x1.75 PURPLE SP/FL 376 HSS-PM NIT TAP

    HSS ‘Purple Ring’ Taps

    Spiral Flute – HSS-PM Nitride Finish
    For blind holes. Taper lead to DIN form B
    (3 x P). Tapping tolerance to 6HX.
    ISO Metric Coarse Helix angle 15°. Tapping depth 2.5 x D.

    Read more
  • M14x2 ORANGE SP/FL 371 HSS-PM NIT+OX TAP

    HSS ‘Orange Ring’ Taps

    Spiral Flute – HSS-PM Nitride & Oxide Finish
    For blind holes. Taper lead to DIN form C.
    This tap has the special
    chamfer lead of (3 x P).
    Tapping tolerance: spiral flute to 6H.
    ISO Metric Coarse Helix angle 40°. Tapping depth 2.5 x D.

    Read more
  • M16x2 OR. SP/FL 376 HSS-PM NIT+OX TAP

    HSS ‘Orange Ring’ Taps

    Spiral Flute – HSS-PM Nitride & Oxide Finish
    For blind holes. Taper lead to DIN form C.
    This tap has the special
    chamfer lead of (3 x P).
    Tapping tolerance: spiral flute to 6H.
    ISO Metric Coarse Helix angle 40°. Tapping depth 2.5 x D.

    Read more
  • M16x2 ORANGE SP/PT 376 HSS-PM NIT+OX TAP

    HSS ‘Orange Ring’ Taps

    Spiral Point/Gun Nose –
    HSS-PM Nitride & Oxide Finish
    For through holes.
    Taper lead to DIN form B
    (3.5 x P to 5.5 x P).
    Tapping tolerance to 6HX.
    ISO Metric Coarse

    Suitable for the following Material Groups;
    4.3
    Titanium alloys of a hard and very hard to machine nature.
    5.1
    Heat resistant super alloys including iron based high temperature alloys.
    5.2
    Heat resistant super alloys, cobalt or nickel based hard to very hard to machine

    Read more
  • M16x2 PURPLE SP/FL 376 HSS-PM NIT TAP

    HSS ‘Purple Ring’ Taps

    Right Hand Cutting – Left Hand
    Spiral Flute – HSS-PM Nitride Finish
    For through holes. Left hand spiral.
    Taper lead to DIN form D (3.5 x P to 5 x P).
    Tapping tolerance to 6HX.
    ISO Metric Coarse Helix angle 15°.

    Read more
  • M3x0.5 ORANGE S/PT 371 HSS-PM NIT+OX TAP

    HSS ‘Orange Ring’ Taps

    Spiral Point/Gun Nose –
    HSS-PM Nitride & Oxide Finish
    For through holes.
    Taper lead to DIN form B
    (3.5 x P to 5.5 x P).
    Tapping tolerance to 6HX.
    ISO Metric Coarse

    Suitable for the following Material Groups;
    4.3
    Titanium alloys of a hard and very hard to machine nature.
    5.1
    Heat resistant super alloys including iron based high temperature alloys.
    5.2
    Heat resistant super alloys, cobalt or nickel based hard to very hard to machine

    Read more
  • M3x0.5 ORANGE SP/FL 371 HSS-PM NIT+OX TAP

    HSS ‘Orange Ring’ Taps

    Spiral Flute – HSS-PM Nitride & Oxide Finish
    For blind holes. Taper lead to DIN form C.
    This tap has the special
    chamfer lead of (3 x P).
    Tapping tolerance: spiral flute to 6H.
    ISO Metric Coarse Helix angle 40°. Tapping depth 2.5 x D.

    Read more
  • M3x0.5 PURPLE SP/FL 371 HSS-PM NIT TAP

    HSS ‘Purple Ring’ Taps

    Right Hand Cutting – Left Hand
    Spiral Flute – HSS-PM Nitride Finish
    For through holes. Left hand spiral.
    Taper lead to DIN form D (3.5 x P to 5 x P).
    Tapping tolerance to 6HX.
    ISO Metric Coarse Helix angle 15°.

    Read more
  • M3x0.5 PURPLE SP/FL 371 HSS-PM NIT TAP

    HSS ‘Purple Ring’ Taps

    Spiral Flute – HSS-PM Nitride Finish
    For blind holes. Taper lead to DIN form B
    (3 x P). Tapping tolerance to 6HX.
    ISO Metric Coarse Helix angle 15°. Tapping depth 2.5 x D.

    Read more
