Showing all 6 results

•

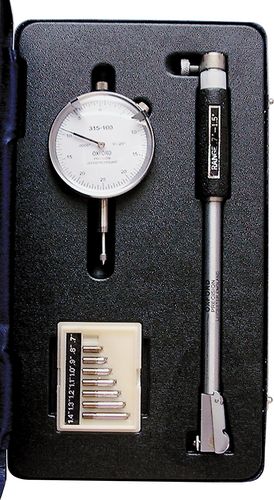

  0.7-1.5″ DIAL BORE GAUGE

  Oxford Dial Indicating Bore Gauges

  29mm 1 1/8” Dial Diameter
  Suitable for rapid, accurate measurement of size, concentricity, wear, taper, etc., in a wide range of bores. For workshop and inspection use. All models have one fixed and one moving anvil and a self-adjusting centre shoe. A ‘datum point’ can be set by using a setting ring of a known diameter or a micrometer. ‘ Zero’ the gauge to this datum point by rotating the bezel to align ‘zero’ with the indicator. To check a bore is within tolerance, the limit hands can be fixed as required. All anvils are spring loaded to expand into the bore. For accurate reading ensure the stem of the gauge is parallel to the axis of the bore. This can be checked by ‘rocking’ the gauge back and forth until the smallest diameter is found. All models have inter-changeable anvils to cover a range of bore sizes.
  Supplied in a tough hard case.

  Type – Metric
  Graduation: 0.01mm
  Face Dial: 57mm
  Reading: 0-100
  Travel Per Rev: 1mm
  Total Travel: 3mm

  Type – Inch
  Graduation: 0.0005″
  Face Dial: 2 3/16″
  Reading: 0-25-0
  Travel Per Rev: 0.050″
  Total Travel: 0.25″

  Read more
•

  1.4-2.4″ DIAL BORE GAUGE

  Oxford Dial Indicating Bore Gauges

  29mm 1 1/8” Dial Diameter
  Suitable for rapid, accurate measurement of size, concentricity, wear, taper, etc., in a wide range of bores. For workshop and inspection use. All models have one fixed and one moving anvil and a self-adjusting centre shoe. A ‘datum point’ can be set by using a setting ring of a known diameter or a micrometer. ‘ Zero’ the gauge to this datum point by rotating the bezel to align ‘zero’ with the indicator. To check a bore is within tolerance, the limit hands can be fixed as required. All anvils are spring loaded to expand into the bore. For accurate reading ensure the stem of the gauge is parallel to the axis of the bore. This can be checked by ‘rocking’ the gauge back and forth until the smallest diameter is found. All models have inter-changeable anvils to cover a range of bore sizes.
  Supplied in a tough hard case.

  Type – Metric
  Graduation: 0.01mm
  Face Dial: 57mm
  Reading: 0-100
  Travel Per Rev: 1mm
  Total Travel: 3mm

  Type – Inch
  Graduation: 0.0005″
  Face Dial: 2 3/16″
  Reading: 0-25-0
  Travel Per Rev: 0.050″
  Total Travel: 0.25″

  Read more
•

  18-35mm DIAL BORE GAUGE

  Oxford Dial Indicating Bore Gauges

  29mm 1 1/8” Dial Diameter
  Suitable for rapid, accurate measurement of size, concentricity, wear, taper, etc., in a wide range of bores. For workshop and inspection use. All models have one fixed and one moving anvil and a self-adjusting centre shoe. A ‘datum point’ can be set by using a setting ring of a known diameter or a micrometer. ‘ Zero’ the gauge to this datum point by rotating the bezel to align ‘zero’ with the indicator. To check a bore is within tolerance, the limit hands can be fixed as required. All anvils are spring loaded to expand into the bore. For accurate reading ensure the stem of the gauge is parallel to the axis of the bore. This can be checked by ‘rocking’ the gauge back and forth until the smallest diameter is found. All models have inter-changeable anvils to cover a range of bore sizes.
  Supplied in a tough hard case.

  Type – Metric
  Graduation: 0.01mm
  Face Dial: 57mm
  Reading: 0-100
  Travel Per Rev: 1mm
  Total Travel: 3mm

  Type – Inch
  Graduation: 0.0005″
  Face Dial: 2 3/16″
  Reading: 0-25-0
  Travel Per Rev: 0.050″
  Total Travel: 0.25″

  Read more
•

  2.0-6.0″ DIAL BORE GAUGE

  Oxford Dial Indicating Bore Gauges

  29mm 1 1/8” Dial Diameter
  Suitable for rapid, accurate measurement of size, concentricity, wear, taper, etc., in a wide range of bores. For workshop and inspection use. All models have one fixed and one moving anvil and a self-adjusting centre shoe. A ‘datum point’ can be set by using a setting ring of a known diameter or a micrometer. ‘ Zero’ the gauge to this datum point by rotating the bezel to align ‘zero’ with the indicator. To check a bore is within tolerance, the limit hands can be fixed as required. All anvils are spring loaded to expand into the bore. For accurate reading ensure the stem of the gauge is parallel to the axis of the bore. This can be checked by ‘rocking’ the gauge back and forth until the smallest diameter is found. All models have inter-changeable anvils to cover a range of bore sizes.
  Supplied in a tough hard case.

  Type – Metric
  Graduation: 0.01mm
  Face Dial: 57mm
  Reading: 0-100
  Travel Per Rev: 1mm
  Total Travel: 3mm

  Type – Inch
  Graduation: 0.0005″
  Face Dial: 2 3/16″
  Reading: 0-25-0
  Travel Per Rev: 0.050″
  Total Travel: 0.25″

  Read more
•

  35-50mm DIAL BORE GAUGE

  Oxford Dial Indicating Bore Gauges

  29mm 1 1/8” Dial Diameter
  Suitable for rapid, accurate measurement of size, concentricity, wear, taper, etc., in a wide range of bores. For workshop and inspection use. All models have one fixed and one moving anvil and a self-adjusting centre shoe. A ‘datum point’ can be set by using a setting ring of a known diameter or a micrometer. ‘ Zero’ the gauge to this datum point by rotating the bezel to align ‘zero’ with the indicator. To check a bore is within tolerance, the limit hands can be fixed as required. All anvils are spring loaded to expand into the bore. For accurate reading ensure the stem of the gauge is parallel to the axis of the bore. This can be checked by ‘rocking’ the gauge back and forth until the smallest diameter is found. All models have inter-changeable anvils to cover a range of bore sizes.
  Supplied in a tough hard case.

  Type – Metric
  Graduation: 0.01mm
  Face Dial: 57mm
  Reading: 0-100
  Travel Per Rev: 1mm
  Total Travel: 3mm

  Type – Inch
  Graduation: 0.0005″
  Face Dial: 2 3/16″
  Reading: 0-25-0
  Travel Per Rev: 0.050″
  Total Travel: 0.25″

  Read more
•

  50-150mm DIAL BORE GAUGE

  Oxford Dial Indicating Bore Gauges

  29mm 1 1/8” Dial Diameter
  Suitable for rapid, accurate measurement of size, concentricity, wear, taper, etc., in a wide range of bores. For workshop and inspection use. All models have one fixed and one moving anvil and a self-adjusting centre shoe. A ‘datum point’ can be set by using a setting ring of a known diameter or a micrometer. ‘ Zero’ the gauge to this datum point by rotating the bezel to align ‘zero’ with the indicator. To check a bore is within tolerance, the limit hands can be fixed as required. All anvils are spring loaded to expand into the bore. For accurate reading ensure the stem of the gauge is parallel to the axis of the bore. This can be checked by ‘rocking’ the gauge back and forth until the smallest diameter is found. All models have inter-changeable anvils to cover a range of bore sizes.
  Supplied in a tough hard case.

  Type – Metric
  Graduation: 0.01mm
  Face Dial: 57mm
  Reading: 0-100
  Travel Per Rev: 1mm
  Total Travel: 3mm

  Type – Inch
  Graduation: 0.0005″
  Face Dial: 2 3/16″
  Reading: 0-25-0
  Travel Per Rev: 0.050″
  Total Travel: 0.25″

  Read more
