Showing all 3 results

•

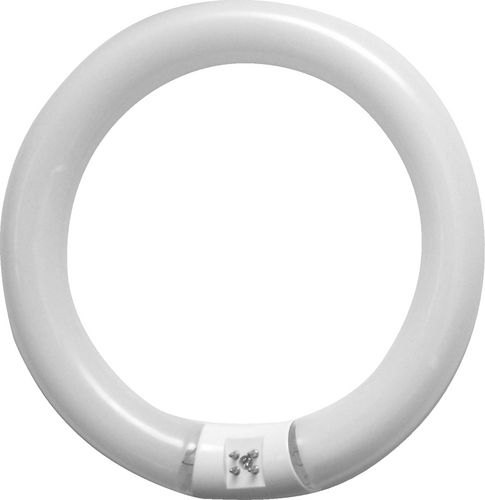

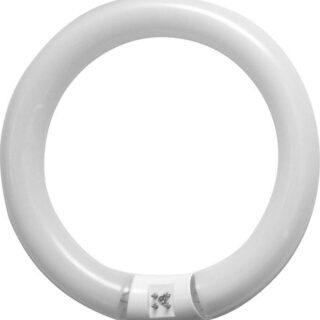

  22W FLUORESCENT TUBE (CIRCULAR)

  Oxford Accessories for Bench Magnifier with Adjustable Arm Type

  Fluorescent Tube and Table Clamp for Bench Magnifier OXD-316-1030K

  Read more
•

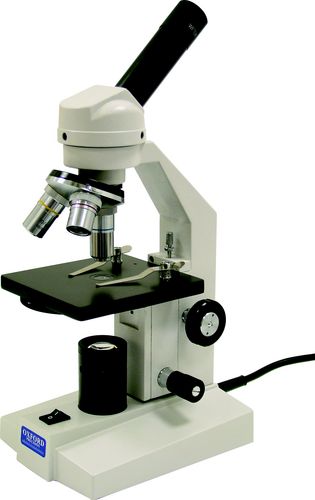

  BCM400 BIOLOGICAL COMPOUND MICROSCOPE

  Oxford Biological Compound Microscope

  BCM400
  Constructed to high optical and mechanical standards, the Oxford Biological Compound Microscope produces a clear and well defined two dimensional image. Designed for clinical examination and teaching demonstrations in laboratories, scientific research, colleges and the medical field. An ideal instrument for biological, bacteriological, pathological and pharmaceutical research. High quality prism providing a magnification of up to 400x. Fully coated optical system for improved light transmission and overall image quality. Objective lenses are of DIN standard, colour coded and click into position. Eyepiece with pointer.
  Monocular head which is inclined at 45° and can be rotated 360°. Separate fine and coarse focus by rack and pinion with a built-in slip clutch and tension adjustment. Built in illuminator with a blue filter and a built in condenser lens ensuring optimal light effect for comfortable and clear viewing. Large die cast acid and reagent proof stage.

  Eyepiece: Wide angle 10x, 18mm field with pointer.
  Tube length: 160mm.
  Objective lenses: Achromatic DIN 4x (0.10 numerical aperture).
  Objective lenses: Achromatic DIN 10x (0.25 numerical aperture).
  Objective lenses: Achromatic DIN 40xS (0.65 numerical aperture) retractable.
  Disc diaphragm: 3mm, 4mm, 5mm, 8mm and 20mm calibrated dish type.
  Stage condenser: Single lens 0.65 numerical aperture condenser.
  Fine focusing: 0.0002mm.
  Stage: 110 x 120mm.
  Lamp: 220V/20W tungsten bulb.
  Fuse type: Lamp T1A 250V, plug 3 amp.
  Voltage: 220V ± 10%, 50/60Hz.
  Indoor working temperature: 0°C – 40°C (32°F – 104°F).
  Maximum relative humidity: 85%.
  Overall height: 355mm.
  Net weight: 2.832kg.

  Read more
•

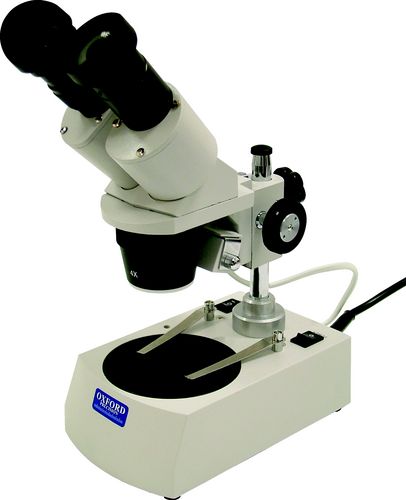

  DSM040 DISSECTING STEREOMICROSCOPE

  Oxford Dissecting Stereo Metallurgical Microscope

  DSM040
  Constructed to high optical and mechanical standards, the Oxford Dissecting Stereo Microscope produces a clear and well defined three dimensional image. Designed for clinical examination and teaching demonstrations in laboratories, scientific research, colleges and the medical field. Provides true colour. High quality prism providing a magnification of up to 40x. Fully coated optical system for improved light transmission and overall image quality. Objective lenses are of DIN standard and click into position. Rubber eyecups and a diopter adjustment ring for clear and comfortable viewing. Rack and pinion focusing with built in slip clutch system. A choice of either upper or lower illumination or both. Pillar mounted body rotates 360° and can be removed and mounted on machine tools or laboratory apparatus. Binocular head which is inclined at 45°. Built in illuminator.

  Eyepiece: Wide angle 10x.
  Field of view: 10mm at 2x/5mm at 4x.
  Diopter adjustment range: ±5mm.
  Objective lenses: Achromatic DIN 2x/object field 10mm.
  Objective lenses: Achromatic DIN 4x /object field 5mm.
  Working distance: 53mm.
  Interpupillary distance: Adjustable between 55 – 75mm.
  Object plate: 95mm black/white and opaque glass.
  Lamp: 12V/10W festoon incandescent clear bulb.
  Fuse type: Lamp T1A 250V, plug 3 amp.
  Voltage: 220V ± 10%, 50/60Hz.
  Indoor working temperature: 0°C – 40°C (32°F – 104°F).
  Maximum relative humidity: 85%.
  Overall height: 355mm.
  Net weight: 2.359kg.

  Read more
