Category: Indexing Units & Rotary Tables

Indexing Units & Rotary Tables

Showing all 6 results

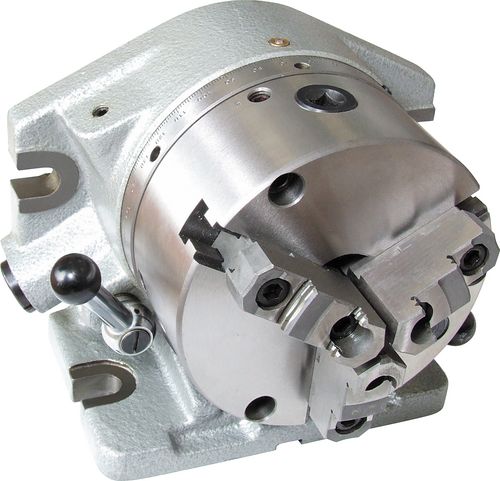

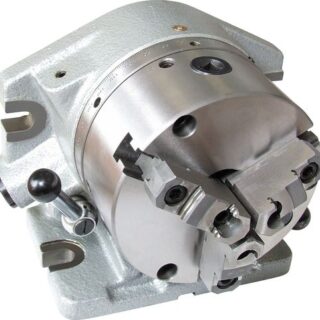

  • 167mm HORIZONTAL & VERTICAL INDEX UNIT CHUCK

    Indexa Horizontal & Vertical Index Unit Chucks

    Ideal for indexing items to be machined in pre-set or manually set incremental angles.
    Indexing accuracy 25 seconds. Angular indexing through the graduation ring from
    0 to 360 degrees in 1 degree increments. Basic indexing by means of a catch device
    permitting divisions of 2, 3, 4, 6, 8, 12 and 24 without disassembly. Fitted with standard three jaw self-centring scroll chuck with two sets of jaws, for inside and outside gripping.

    Read more

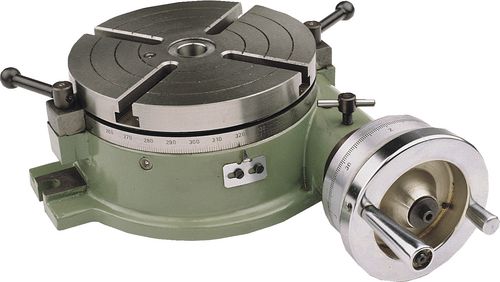

  • 200mm HORIZONTAL & VERTICAL ROTARY TABLE

    Indexa Type SOPP Horizontal and Vertical Rotary Table

    Rotary Tables
    With a disengageable worm gear which allows rapid indexing. One rotation of handle equals four degrees on collar. The table is made of high grade cast iron. Works as an indexing unit in the vertical position as well as a conventional rotary table for circular cutting, boring or angle setting, etc. Optional dividing plates are available separately.

    Accuracy:
    Parallelism of clamping surface to base: 0.020mm
    Flatness of clamping surface: 0.015mm
    True running cylindrical centre bore: 0.020mm
    True running of tapered centre bore: 0.020mm
    Squareness of clamping surface to centre slot: 0.010mm

    Read more
  • 210mm HORIZONTAL & VERTICAL INDEX UNIT CHUCK

    Indexa Horizontal & Vertical Index Unit Chucks

    Ideal for indexing items to be machined in pre-set or manually set incremental angles.
    Indexing accuracy 25 seconds. Angular indexing through the graduation ring from
    0 to 360 degrees in 1 degree increments. Basic indexing by means of a catch device
    permitting divisions of 2, 3, 4, 6, 8, 12 and 24 without disassembly. Fitted with standard three jaw self-centring scroll chuck with two sets of jaws, for inside and outside gripping.

    Read more
  • 250mm HORIZONTAL & VERTICAL ROTARY TABLE

    Indexa Type SOPP Horizontal and Vertical Rotary Table

    Rotary Tables
    With a disengageable worm gear which allows rapid indexing. One rotation of handle equals four degrees on collar. The table is made of high grade cast iron. Works as an indexing unit in the vertical position as well as a conventional rotary table for circular cutting, boring or angle setting, etc. Optional dividing plates are available separately.

    Accuracy:
    Parallelism of clamping surface to base: 0.020mm
    Flatness of clamping surface: 0.015mm
    True running cylindrical centre bore: 0.020mm
    True running of tapered centre bore: 0.020mm
    Squareness of clamping surface to centre slot: 0.010mm

    Read more
  • 315mm HORIZONTAL & VERTICAL ROTARY TABLE

    Indexa Type SOPP Horizontal and Vertical Rotary Table

    Rotary Tables
    With a disengageable worm gear which allows rapid indexing. One rotation of handle equals four degrees on collar. The table is made of high grade cast iron. Works as an indexing unit in the vertical position as well as a conventional rotary table for circular cutting, boring or angle setting, etc. Optional dividing plates are available separately.

    Accuracy:
    Parallelism of clamping surface to base: 0.020mm
    Flatness of clamping surface: 0.015mm
    True running cylindrical centre bore: 0.020mm
    True running of tapered centre bore: 0.020mm
    Squareness of clamping surface to centre slot: 0.010mm

    Read more
  • DIVIDING PLATE FOR INDEXA ROTARY TABLES

    Indexa Optional Extras for Rotary Tables

    Dividing Plate for INDEXA Rotary Tables

    Read more
