SVVBN 2020K16 EXTERNAL TOOLHOLDER
Rp1.942.000
Indexa Screw-On External Toolholders – SVVB N

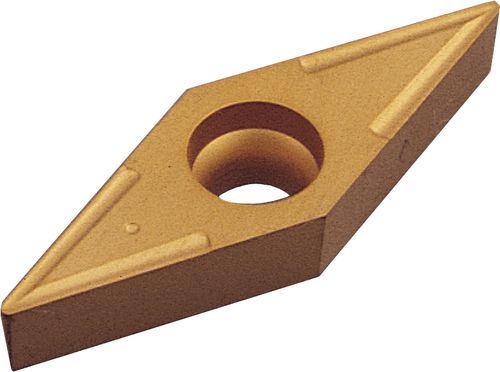

72.5° approach for 5° positive 35° rhombic inserts.
Out of stock
SKU : IND1066080K
Indexa Screw-On External Toolholders – SVVB N
72.5° approach for 5° positive 35° rhombic inserts.
Specification :
Brand : Indexa
Designation Svvb…. : N 2020K

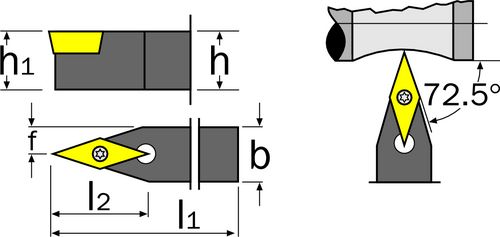

Dimensions b : 20
Dimensions f : 10.6
Dimensions h=h1 : 20
Dimensions l1 : 125
Dimensions l2 : 28
eCl@ss Code : 28039190
Overall Weight : 0.345
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
