STGCR 1616H11 EXTERNAL TOOLHOLDER
Indexa Screw-On External Toolholders – STGC R/L
90° approach for 7° positive triangular inserts.
Out of stock
SKU : IND1065680K
Indexa Screw-On External Toolholders – STGC R/L
90° approach for 7° positive triangular inserts.

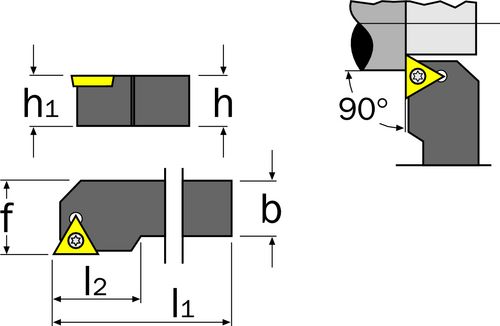

Specification :
Brand : Indexa
Designation STGC…. : R 1616H
Dimensions b : 16
Dimensions f : 20
Dimensions h=h1 : 16
Dimensions l1 : 100
Dimensions l2 : 22
eCl@ss Code : 28039190
Overall Weight : 0.195
Supplier Part No. : 106-5680
UNSPSC Code : 23242106
