STANDARD CIRCUIT TESTER 6/12V

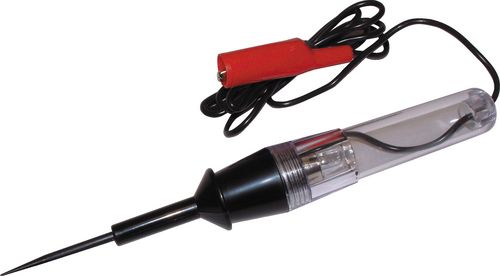

Kennedy Standard Circuit Tester
Suitable for use with power on. For 6 and 12V automotive systems only. Locates shorts, earth and open circuits. 1m lead. Super sharp tempered steel probe to test through wire insulation. Probe length: 45mm.
Out of stock
SKU : KEN5031020K
Kennedy Standard Circuit Tester
Suitable for use with power on. For 6 and 12V automotive systems only. Locates shorts, earth and open circuits. 1m lead. Super sharp tempered steel probe to test through wire insulation. Probe length: 45mm.
Specification :
Brand : Kennedy Industrial
eCl@ss Code : 27200308
Model Number : SCT012
Overall Depth : 30
Overall Length : 260
Overall Weight : 0.081
Overall Width : 95
UNSPSC Code : 41113704
WEEE Compliant : Yes
Weight each : 80g
| Weight | 1 kg |
|---|
