AUTO RANGE DIGI. CLAMP METER TRUE RMS 1000A AC/DC

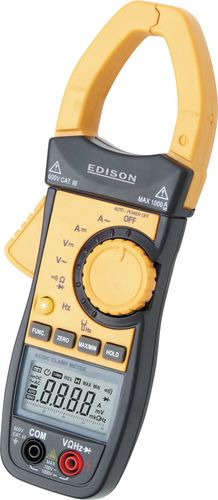

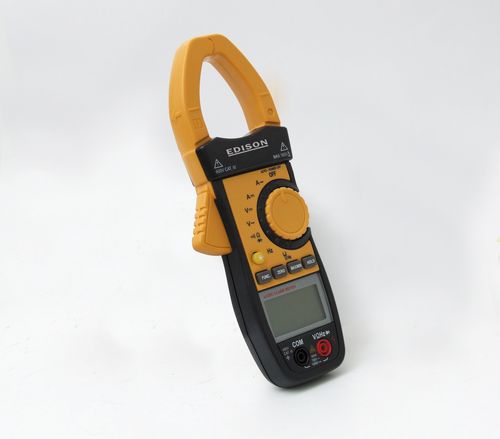

Edison Auto Range 1000A AC/DC Digital Clamp Meters – DCM070 True RMS
Edison⢠multimeters are an essential and versatile piece of test equipment. They are used by qualified electricians and mechanics alike to perform various essential tests and measurements on delicate electronic systems, automotive devices, mains appliances, and installations. By operating the multi position switch they can quickly and easily set to be a voltmeter, an ammeter or an ohmmeter. Within the Edison⢠range of multimeters you will find direct reading multimeters and non-contact reading multimeters.
DCM070 True RMS
Ideal for electrical troubleshooting & testing in commercial environments. The AC/DC digital multimeter is capable of testing for the following: telephone networks, fuse connections.
AC voltage: 750V.
DC voltage: 1000V.
AC/DC current: 1000A.
Resistance: 60MW.
Frequency: 100kHz.
Frequency from clamp: 400Hz.
Diode testing facility, continuity buzzer, clear display with LED backlight & data hold function, auto power âOFFâ & low power indicator, auto range facility, 4 segments bar graph.
Digital display count: 3999.
Conforms to IEC 1010, CAT II 1000V and CAT III 600V.

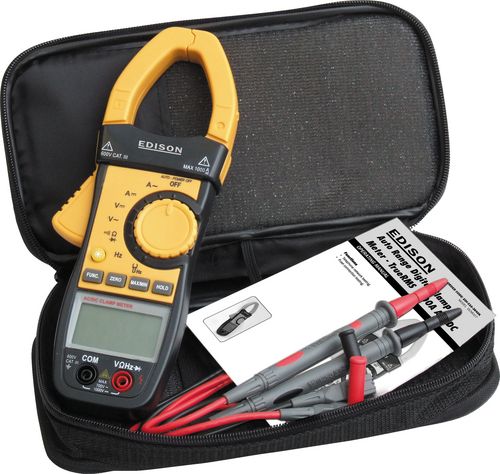

Pack includes: digital clamp multimeter, test probes, 3x DC1.5V AAA batteries (installed), instruction manual, protective case with carry handle.
Dimensions (W x D x H): 140 x 58 x 260mm.
Weight: 606g.
Out of stock
SKU : EDI5163840K
Edison Auto Range 1000A AC/DC Digital Clamp Meters – DCM070 True RMS
Edison⢠multimeters are an essential and versatile piece of test equipment. They are used by qualified electricians and mechanics alike to perform various essential tests and measurements on delicate electronic systems, automotive devices, mains appliances, and installations. By operating the multi position switch they can quickly and easily set to be a voltmeter, an ammeter or an ohmmeter. Within the Edison⢠range of multimeters you will find direct reading multimeters and non-contact reading multimeters.
DCM070 True RMS
Ideal for electrical troubleshooting & testing in commercial environments. The AC/DC digital multimeter is capable of testing for the following: telephone networks, fuse connections.
AC voltage: 750V.
DC voltage: 1000V.
AC/DC current: 1000A.
Resistance: 60MW.
Frequency: 100kHz.
Frequency from clamp: 400Hz.
Diode testing facility, continuity buzzer, clear display with LED backlight & data hold function, auto power âOFFâ & low power indicator, auto range facility, 4 segments bar graph.
Digital display count: 3999.
Conforms to IEC 1010, CAT II 1000V and CAT III 600V.
Pack includes: digital clamp multimeter, test probes, 3x DC1.5V AAA batteries (installed), instruction manual, protective case with carry handle.
Dimensions (W x D x H): 140 x 58 x 260mm.
Weight: 606g.
Specification :
Brand : Edison
Model Number : DCM070 True RMS
Supplier Part No. : DCM007
UNSPSC Code : 41113637
WEEE Compliant : Yes
| Weight | 1 kg |
|---|
