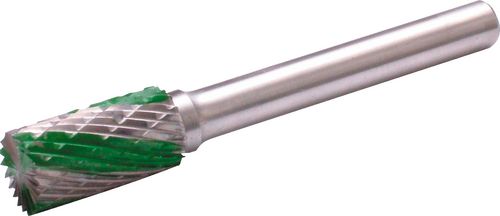

SPEEDWAY DUAL CUT CARBIDE BURR SET 3mm SHANK 8-PCE
‘Speedway’ Burr Sets

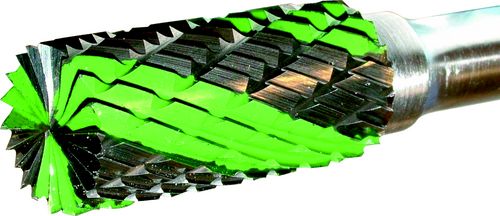

Unique flute design: fine pitch and coarse pitch flutes for rapid material removal, while maintaining a smooth surface finish.
Contains 1x each:
10 x 19mm cylindrical end cutting, cylindrical plain end, cylindrical ball end, round tree, pointed tree, 6 x 5mm spherical, 6 x 19mm conical, 10 x 27 conical 14°.
SKU : YRK2109940K
‘Speedway’ Burr Sets
Unique flute design: fine pitch and coarse pitch flutes for rapid material removal, while maintaining a smooth surface finish.
Contains 1x each:
10 x 19mm cylindrical end cutting, cylindrical plain end, cylindrical ball end, round tree, pointed tree, 6 x 5mm spherical, 6 x 19mm conical, 10 x 27 conical 14°.
Specification :
Brand : York Abrasives
eCl@ss Code : 21010101
No. of Pieces : 8
Overall Depth : 35
Overall Length : 200
Overall Weight : 0.125
Overall Width : 75
Shank Size : 3mm
UNSPSC Code : 23251706
| Weight | 1 kg |
|---|
