SDNCN 1616H11 EXTERNAL TOOLHOLDER
Indexa Lever Lock External Toolholders – SDNC N

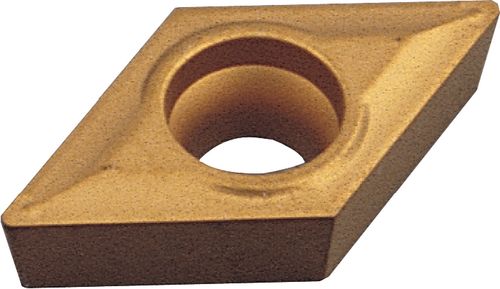

62.5° approach for 7° positive 55° rhombic inserts.
Out of stock
SKU : IND1064780K
Indexa Lever Lock External Toolholders – SDNC N
62.5° approach for 7° positive 55° rhombic inserts.

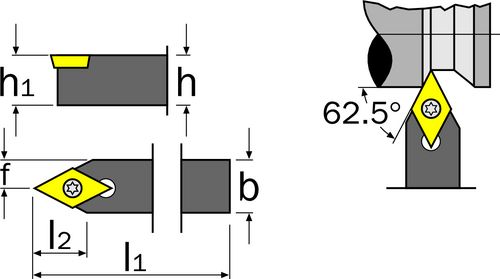

Specification :
Brand : Indexa
Designation SDNC…. : N 1616H
Dimensions b : 16
Dimensions f : 8.0
Dimensions h=h1 : 16
Dimensions l1 : 100
Dimensions l2 : 22
eCl@ss Code : 28039190
Overall Weight : 0.19
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
