SDNCN 1010E07 EXTERNAL TOOLHOLDER
Indexa Lever Lock External Toolholders – SDNC N

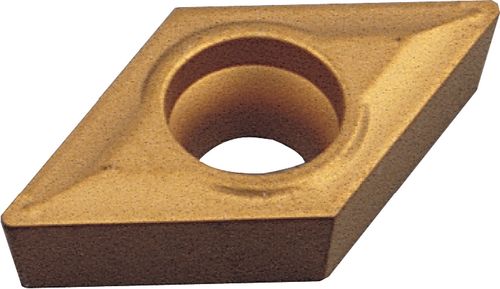

62.5° approach for 7° positive 55° rhombic inserts.
Out of stock
SKU : IND1064720K
Indexa Lever Lock External Toolholders – SDNC N
62.5° approach for 7° positive 55° rhombic inserts.
Specification :
Brand : Indexa
Designation SDNC…. : N 1010E

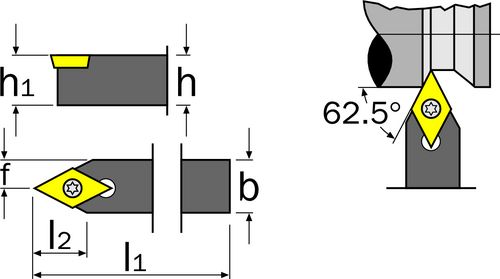

Dimensions b : 10
Dimensions f : 5.0
Dimensions h=h1 : 10
Dimensions l1 : 70
Dimensions l2 : 16
eCl@ss Code : 28039190
Overall Weight : 0.051
Supplier Part No. : 106-4720
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
