SCLCL 2020K09 EXTERNAL TOOLHOLDER
Rp1.637.000
Indexa Screw-On External Toolholders – SCLC R/L

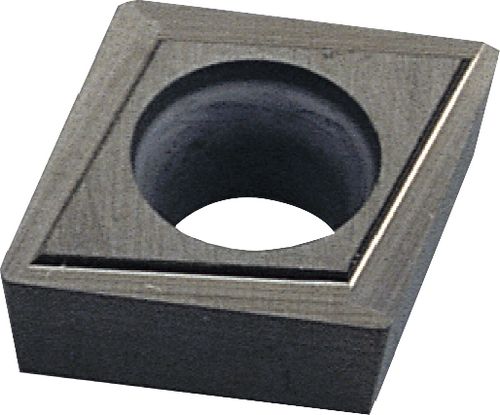

95° approach for 7° positive 80° rhombic inserts.
Out of stock
SKU : IND1064505K
Indexa Screw-On External Toolholders – SCLC R/L
95° approach for 7° positive 80° rhombic inserts.

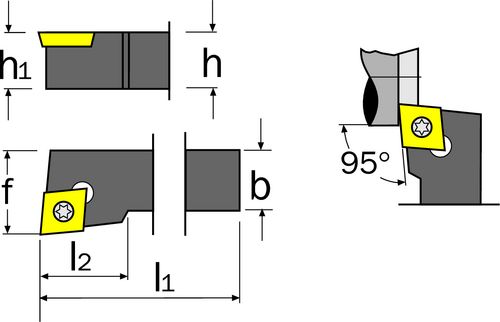

Specification :
Brand : Indexa
Designation SCLC…. : L 2020K
Dimensions b : 20
Dimensions f : 25
Dimensions h=h1 : 20
Dimensions l1 : 125
Dimensions l2 : 20.5
eCl@ss Code : 28039190
Overall Weight : 0.41
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
