S32U PCLNR 12 BORING BAR
Rp4.351.000
Indexa Lever Lock Boring Bars – PCLN R/L
95° approach for 80° negative rhombic inserts.
Out of stock
SKU : IND1066840K
Indexa Lever Lock Boring Bars – PCLN R/L
95° approach for 80° negative rhombic inserts.

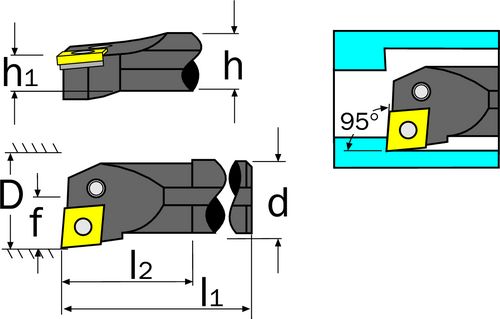

Specification :
Brand : Indexa
Dimensions dg7 : 30
Dimensions f : 22.0
Dimensions h : 30
Dimensions h1 : 15.0
Dimensions l1 : 350
Dimensions l2 : 50
Dmin : 39
eCl@ss Code : 28039190
ISO Ref : S32U PCLNR
Overall Weight : 2.05
Supplier Part No. : 106-6840
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
