S25T PCLNR 09 BORING BAR
Indexa Lever Lock Boring Bars – PCLN R/L
95° approach for 80° negative rhombic inserts.
Out of stock
SKU : IND1066800K
Indexa Lever Lock Boring Bars – PCLN R/L
95° approach for 80° negative rhombic inserts.

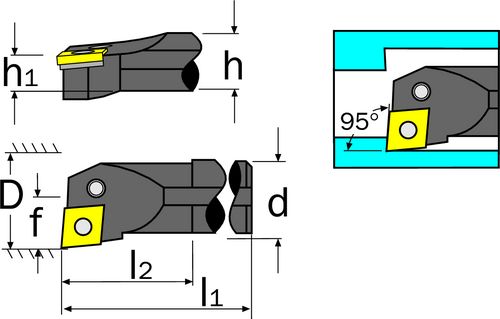

Specification :
Brand : Indexa
Dimensions dg7 : 25
Dimensions f : 17.0
Dimensions h : 23
Dimensions h1 : 11.5
Dimensions l1 : 300
Dimensions l2 : 33
Dmin : 32
eCl@ss Code : 28039190
ISO Ref : S25T PCLNR
Overall Weight : 1.08
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
