S25T CTFPR 16 BORING BAR
Rp2.681.000
Indexa Top Clamp Boring Bars – CTFP R/L

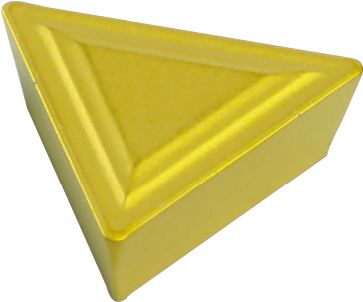

90° approach for 11° positive triangular inserts.
Out of stock
SKU : IND1066460K
Indexa Top Clamp Boring Bars – CTFP R/L
90° approach for 11° positive triangular inserts.
Specification :
Brand : Indexa

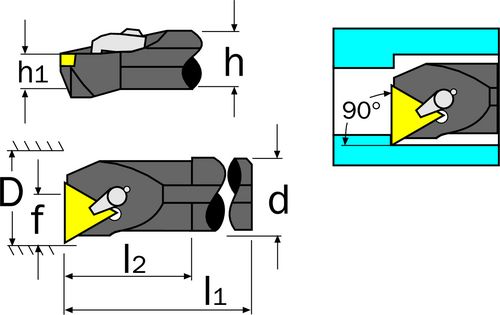

Dimensions dg7 : 25
Dimensions f : 17
Dimensions h : 23
Dimensions h1 : 11.5
Dimensions l1 : 300
Dimensions l2 : 40
Dmin : 31
eCl@ss Code : 28039190
ISO Ref : S25T CTFPR
Overall Weight : 1.05
Supplier Part No. : 106-6460
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
