S20S SDUCL 07 BORING BAR
Indexa Screw-On Boring Bars – SDUC R/L

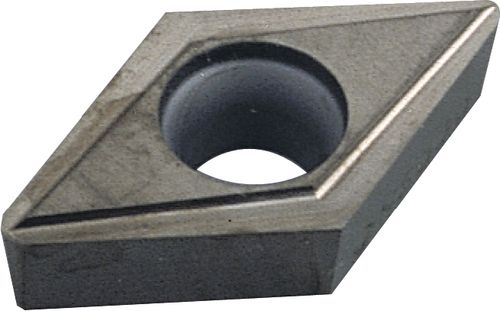

93° approach for 7° positive 55° rhombic inserts.
Out of stock
SKU : IND1067710K
Indexa Screw-On Boring Bars – SDUC R/L
93° approach for 7° positive 55° rhombic inserts.
Specification :
Brand : Indexa

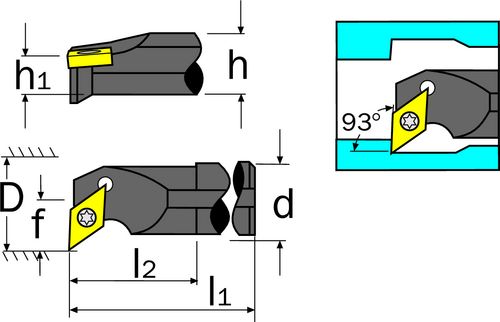

Dimensions dg7 : 20
Dimensions f : 13
Dimensions h : 18
Dimensions h1 : 9.0
Dimensions l1 : 250
Dimensions l2 : 35
Dmin : 24
eCl@ss Code : 28039190
ISO Ref : S20S SDUCL
Overall Weight : 0.575
Supplier Part No. : 106-7710
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
