S16R PWLNR 06 BORING BAR
Rp3.246.000
Indexa Lever Lock Boring Bars – PWLN R/L

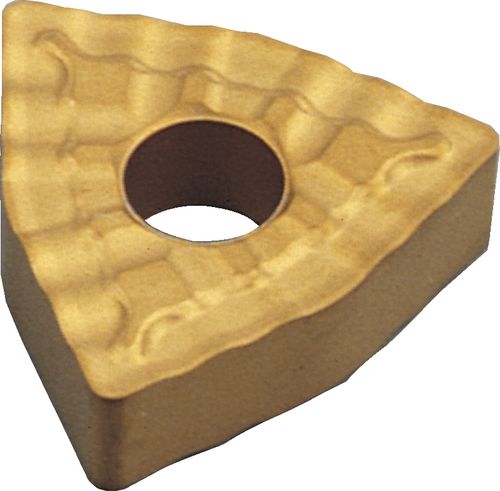

95° approach for negative 80° Trigon inserts.
Out of stock
SKUÂ :Â IND1067320K
Indexa Lever Lock Boring Bars – PWLN R/L
95° approach for negative 80° Trigon inserts.

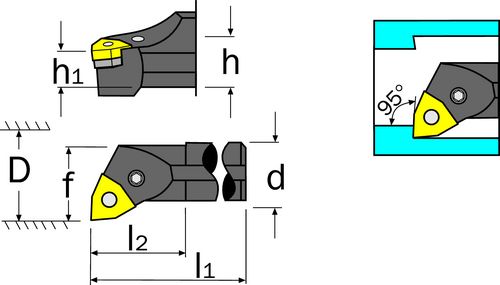

Specification :
Brand : Indexa
Dimensions dg7Â :Â 16
Dimensions f : 10
Dimensions h : 15
Dimensions h1Â :Â 9
Dimensions l1Â :Â 200
Dimensions l2Â :Â 44
Dmin : 19
eCl@ss Code : 28039190
ISO Ref : S16R PWLNR
Overall Weight : 0.28
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
