S12M CTFPR 11 BORING BAR
Rp1.903.000
Indexa Top Clamp Boring Bars – CTFP R/L

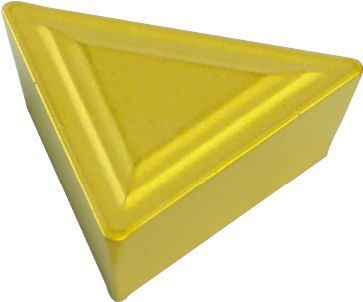

90° approach for 11° positive triangular inserts.
Out of stock
SKU : IND1066400K
Indexa Top Clamp Boring Bars – CTFP R/L
90° approach for 11° positive triangular inserts.
Specification :
Brand : Indexa

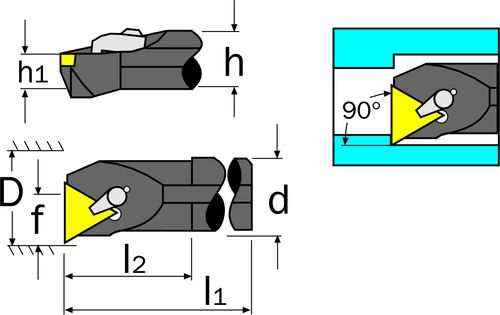

Dimensions dg7 : 12
Dimensions f : 9
Dimensions h : 11
Dimensions h1 : 5.5
Dimensions l1 : 150
Dimensions l2 : 25
Dmin : 16
eCl@ss Code : 28039190
ISO Ref : S12M CTFPR
Overall Weight : 0.12
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
