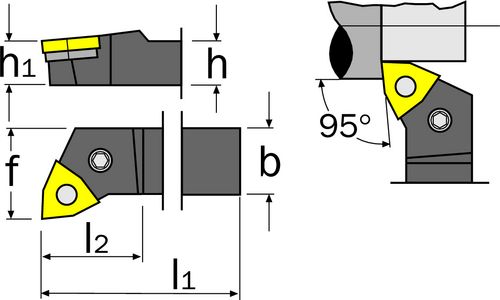

PWLNL 2525M08 EXTERNAL TOOLHOLDER
Indexa Lever Lock External Toolholders – PWLN R/L
95° approach for negative 80° trigon inserts.
Out of stock
SKU : IND1064130K
Indexa Lever Lock External Toolholders – PWLN R/L
95° approach for negative 80° trigon inserts.
Specification :
Brand : Indexa
Designation PWLN…. : L 2525M
Dimensions b : 25
Dimensions f : 32
Dimensions h=h1 : 25
Dimensions l1 : 150
Dimensions l2 : 32
eCl@ss Code : 28039190
Overall Weight : 0.72
UNSPSC Code : 23242106
