PSDNN 3225P19 EXTERNAL TOOLHOLDER
Indexa Lever Lock External Toolholders – PSDN N

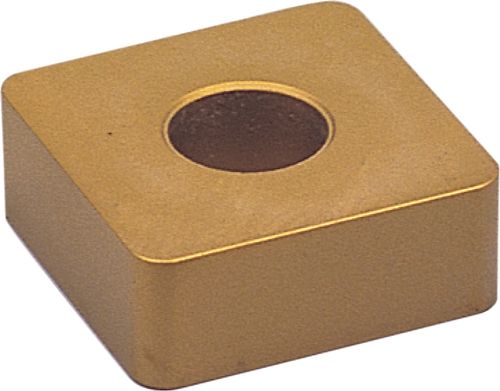

45° straight approach for negative square inserts.
Out of stock
SKUÂ :Â IND1063280K
Indexa Lever Lock External Toolholders – PSDN N
45° straight approach for negative square inserts.
Specification :
Brand : Indexa
Designation PSDN…. : N 3225P

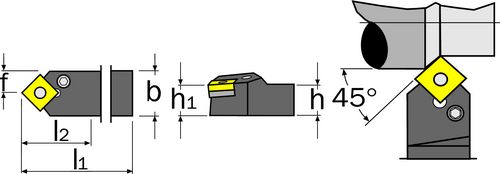

Dimensions b : 25
Dimensions f : 12.5
Dimensions h=h1Â :Â 32
Dimensions l1Â :Â 170
Dimensions l2Â :Â 42
eCl@ss Code : 28039190
Overall Weight : 1.01
Supplier Part No. : 106-3280
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
