PCLNL 3225P12 EXTERNAL TOOLHOLDER
Indexa Lever Lock External Toolholders – PCLN R/L
95° approach for negative 80° rhombic inserts.
Out of stock
SKU : IND1062210K
Indexa Lever Lock External Toolholders – PCLN R/L
95° approach for negative 80° rhombic inserts.

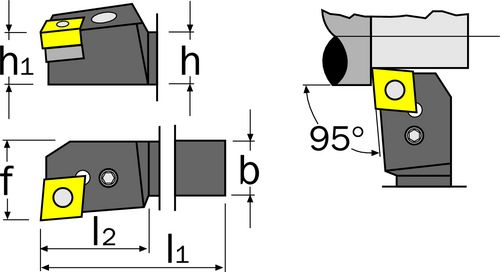

Specification :
Brand : Indexa
Designation PCLN…. : L 3225P
Dimensions b : 25
Dimensions f : 32
Dimensions h=h1 : 32
Dimensions l1 : 170
Dimensions l2 : 28
eCl@ss Code : 28039190
Overall Weight : 1.04
Supplier Part No. : 106-2210
UNSPSC Code : 23242106
Weight each : 1045g
| Weight | 1 kg |
|---|
