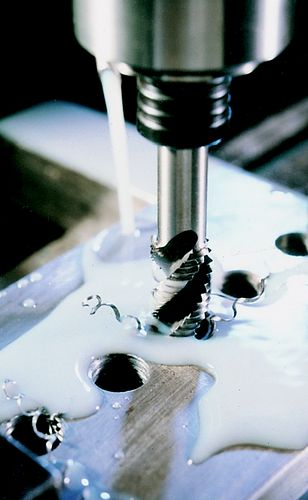

No.10×32 UNF HSS GT SPIRAL POINT TAP
UNF (Unified Fine) HSS Ground Thread Taps
Spiral Point/Gun Nose
Out of stock
SKU : SHR0851090E
UNF (Unified Fine) HSS Ground Thread Taps
Spiral Point/Gun Nose
Specification :
Brand : Sherwood
eCl@ss Code : 21010210
Shank Diameter : 5.00
Size – Pitch : No.10 x 32
Square A/F : 4.00
UNSPSC Code : 27112806
Weight each : 7g
| Weight | 1 kg |
|---|
