MTJNR 2020K16 EXTERNAL TOOLHOLDER
Rp1.498.000
Indexa Combination Top Clamp & Pinlock External Toolholders – MTJN R

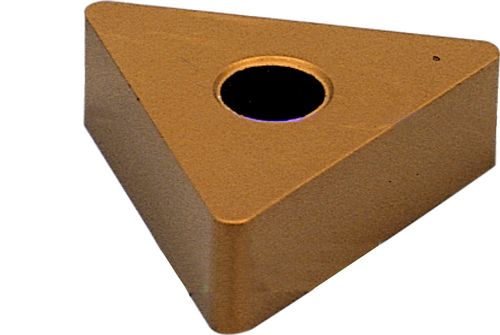

93° approach for negative triangular inserts.
Out of stock
SKU : IND1061300K
Indexa Combination Top Clamp & Pinlock External Toolholders – MTJN R
93° approach for negative triangular inserts.

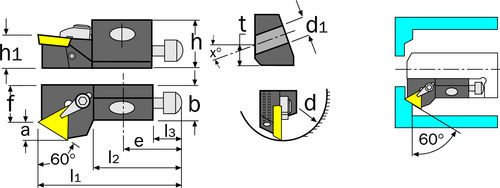

Specification :
Brand : Indexa
Designation MTJN…. : R 2020K
Dimensions b : 20 | mm
Dimensions f : 25
Dimensions h=h1 : 20
Dimensions l1 : 125
Dimensions l2 : 34
eCl@ss Code : 28039190
Overall Weight : 0.435
Supplier Part No. : MTJNR 2020K16
UNSPSC Code : 23242106
Weight each : 427g
