M3-M12 PLAIN SHANK COUNTERBORES (SET-7)
Rp3.473.000

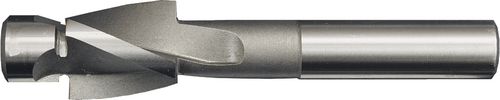

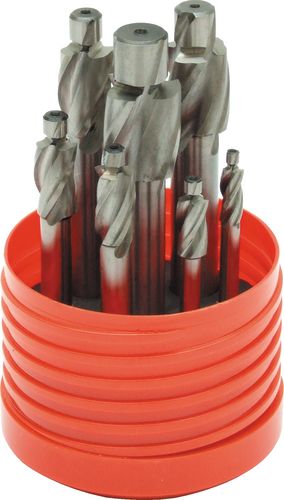

HSS Solid Counterbores – 7 Piece Set, Plain Shank
Plain Shank 7 Piece Set
Manufactured to BS328 : 5 : 1983.
Sizes: M3, M4, M5, M6, M8, M10, M12.
Out of stock
SKU : SHR0219010A
HSS Solid Counterbores – 7 Piece Set, Plain Shank
Plain Shank 7 Piece Set
Manufactured to BS328 : 5 : 1983.
Sizes: M3, M4, M5, M6, M8, M10, M12.
Specification :
Brand : Sherwood
eCl@ss Code : 21010101
No. of Pieces : 7
Overall Depth : 70
Overall Length : 120
Overall Weight : 0.435
Overall Width : 70
UNSPSC Code : 23241603
Weight : 462g
| Weight | 1 kg |
|---|
