CTGPR 2525M16 EXTERNAL TOOLHOLDER
Indexa Top Clamp External Toolholders – CTGP R/L

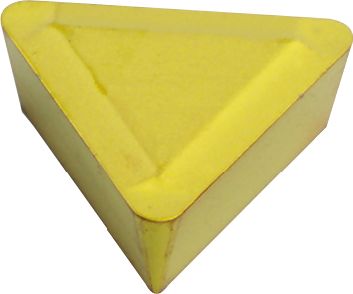

90° approach for 11° positive triangular inserts.
Out of stock
SKU : IND1061120K
Indexa Top Clamp External Toolholders – CTGP R/L
90° approach for 11° positive triangular inserts.
Specification :
Brand : Indexa

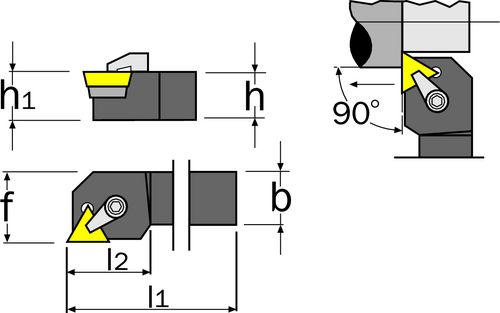

Designation CTGP…. : R 2525M
Dimensions b : 25
Dimensions f : 32
Dimensions h=h1 : 25
Dimensions l1 : 150
Dimensions l2 : 28
eCl@ss Code : 28039190
Overall Weight : 0.695
Supplier Part No. : 106-1120
UNSPSC Code : 23242106
Weight each : 744g
| Weight | 1 kg |
|---|
