CTGPR 2020K16 EXTERNAL TOOLHOLDER
Indexa Top Clamp External Toolholders – CTGP R/L

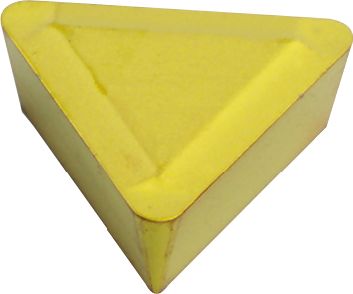

90° approach for 11° positive triangular inserts.
Out of stock
SKU : IND1061100K
Indexa Top Clamp External Toolholders – CTGP R/L
90° approach for 11° positive triangular inserts.

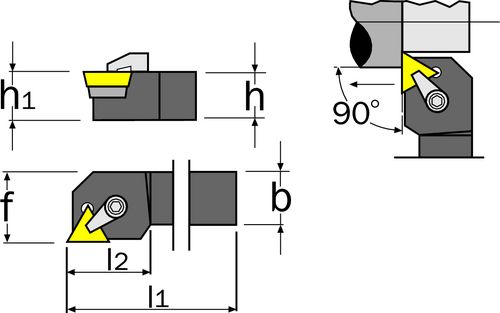

Specification :
Brand : Indexa
Designation CTGP…. : R 2020K
Dimensions b : 20
Dimensions f : 25
Dimensions h=h1 : 20
Dimensions l1 : 125
Dimensions l2 : 28
eCl@ss Code : 28039190
Overall Weight : 0.385
Supplier Part No. : 106-1100
UNSPSC Code : 23242106
Weight each : 397g
| Weight | 1 kg |
|---|
