CTGPR 1616H11 EXTERNAL TOOLHOLDER
Indexa Top Clamp External Toolholders – CTGP R/L

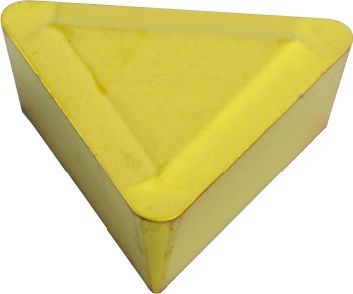

90° approach for 11° positive triangular inserts.
Out of stock
SKUÂ :Â IND1061060K
Indexa Top Clamp External Toolholders – CTGP R/L
90° approach for 11° positive triangular inserts.

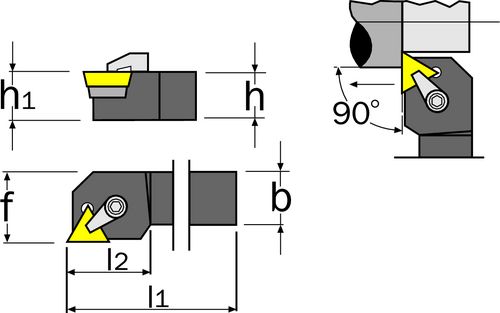

Specification :
Brand : Indexa
Designation CTGP…. : R 1616H
Dimensions b : 16
Dimensions f : 20
Dimensions h=h1Â :Â 16
Dimensions l1Â :Â 100
Dimensions l2Â :Â 22
eCl@ss Code : 28039190
Overall Weight : 0.2
Supplier Part No. : 106-1060
UNSPSC Code : 23242106
Weight each : 207g
