CTGPL 1212F11 EXTERNAL TOOLHOLDER
Indexa Top Clamp External Toolholders – CTGP R/L

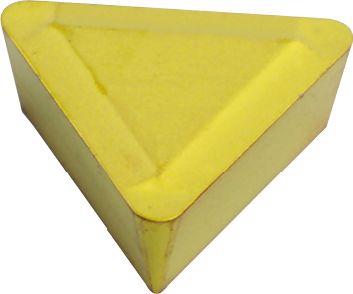

90° approach for 11° positive triangular inserts.
Out of stock
SKUÂ :Â IND1061050K
Indexa Top Clamp External Toolholders – CTGP R/L
90° approach for 11° positive triangular inserts.

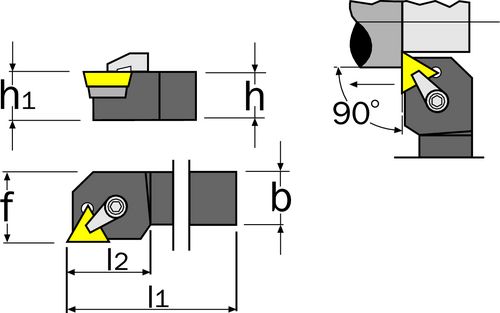

Specification :
Brand : Indexa
Designation CTGP…. : L 1212F
Dimensions b : 12
Dimensions f : 16
Dimensions h=h1Â :Â 12
Dimensions l1Â :Â 80
Dimensions l2Â :Â 18
eCl@ss Code : 28039190
Overall Weight : 0.091
Supplier Part No. : 106-105
UNSPSC Code : 23242106
Weight each : 97g
| Weight | 1 kg |
|---|
