CSSPL 2525M12 EXTERNAL TOOLHOLDER
Indexa Top Clamp External Toolholders – CSSP R/L

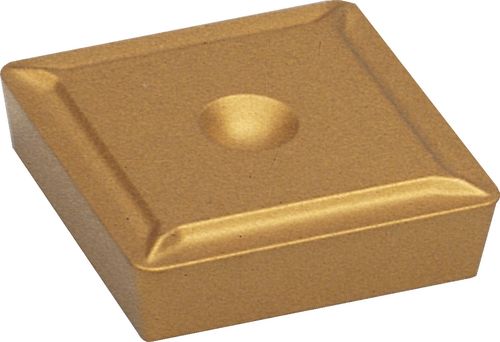

45° approach for 11° positive square inserts.
Out of stock
SKU : IND1060610K
Indexa Top Clamp External Toolholders – CSSP R/L
45° approach for 11° positive square inserts.
Specification :
Brand : Indexa

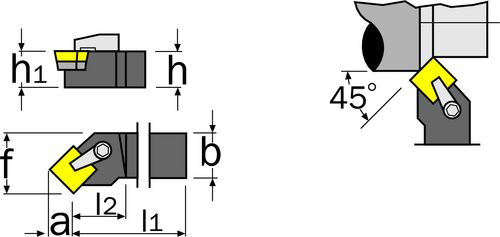

Designation CSSP…. : L 2525M 12
Dimensions b : 25
Dimensions f : 32
Dimensions h=h1 : 25
Dimensions l1 : 150
Dimensions l2 : 28
eCl@ss Code : 28039190
Overall Weight : 0.755
Supplier Part No. : 106-061
UNSPSC Code : 23242106
Weight each : 741g
| Weight | 1 kg |
|---|
