CKJNL 2525M16 EXTERNAL TOOLHOLDER
Indexa Top Clamp External Toolholders – CKJN R/L
93° approach for 55° negative parallelogram inserts.
Out of stock
SKUÂ :Â IND1060250K
Indexa Top Clamp External Toolholders – CKJN R/L
93° approach for 55° negative parallelogram inserts.
Specification :
Brand : Indexa
Designation CKJN…. : L 2525M

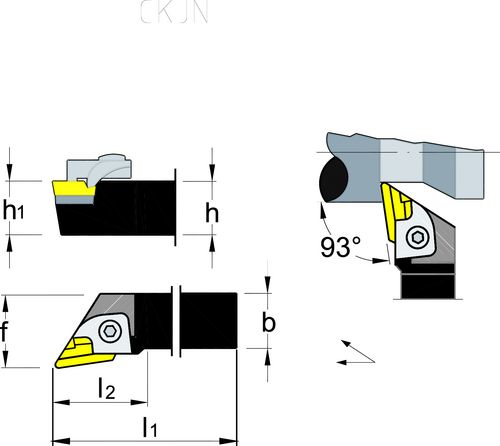

Dimensions b : 25
Dimensions f : 32
Dimensions h=h1Â :Â 25
Dimensions l1Â :Â 150
Dimensions l2Â :Â 34
eCl@ss Code : 28039190
Overall Weight : 0.71
UNSPSC Code : 23242106
Weight each : 736g
| Weight | 1 kg |
|---|
