AUTO RANGE DIGITAL CLAMPMETER 1000A AC/DC

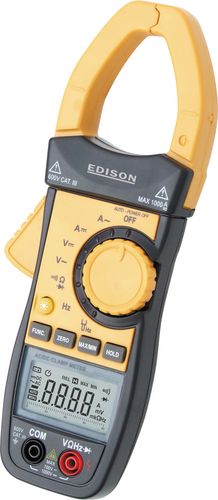

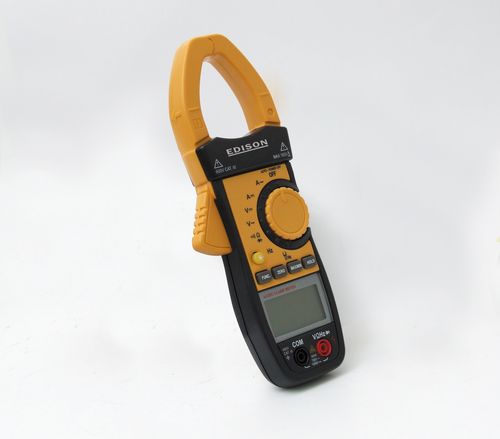

Edison Auto Range 1000A AC/DC Digital Clamp Meters – DCM070
Edison⢠multimeters are an essential and versatile piece of test equipment. They are used by qualified electricians and mechanics alike to perform various essential tests and measurements on delicate electronic systems, automotive devices, mains appliances, and installations. By operating the multi position switch they can quickly and easily set to be a voltmeter, an ammeter or an ohmmeter. Within the Edison⢠range of multimeters you will find direct reading multimeters and non-contact reading multimeters.
DCM070
Ideal for electrical troubleshooting & testing in commercial environments. The AC/DC digital multimeter is capable of testing for the following: telephone networks, fuse connections.
AC voltage: 750V.
DC voltage: 1000V.
AC/DC current: 1000A
Resistance: 60MW.
Frequency: 100kHz.
Frequency from clamp: 400Hz.
Diode testing facility, continuity buzzer, clear display with LED backlight & data hold function, auto power âOFFâ & low power indicator, auto range facility, 4 segments bar graph.
Digital display count: 3999.
Conforms to IEC 1010, CAT II 1000V and CAT III 600V.

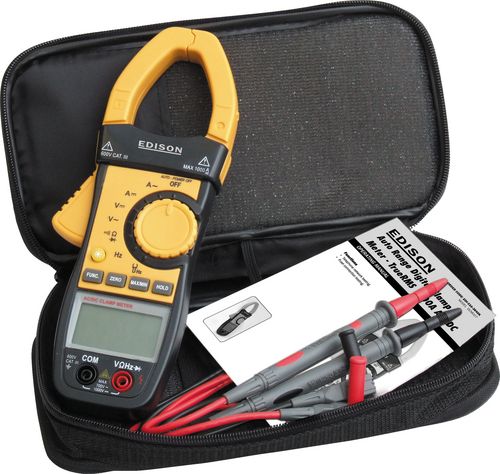

Pack includes: digital clamp multimeter, test probes, 3x DC1.5V AAA batteries (installed), instruction manual, protective case with carry handle,
Dimensions (W x D x H): 140 x 58 x 260mm.
Weight: 606g
3 in stock
SKU : EDI5163800K
Edison Auto Range 1000A AC/DC Digital Clamp Meters – DCM070
Edison⢠multimeters are an essential and versatile piece of test equipment. They are used by qualified electricians and mechanics alike to perform various essential tests and measurements on delicate electronic systems, automotive devices, mains appliances, and installations. By operating the multi position switch they can quickly and easily set to be a voltmeter, an ammeter or an ohmmeter. Within the Edison⢠range of multimeters you will find direct reading multimeters and non-contact reading multimeters.
DCM070
Ideal for electrical troubleshooting & testing in commercial environments. The AC/DC digital multimeter is capable of testing for the following: telephone networks, fuse connections.
AC voltage: 750V.
DC voltage: 1000V.
AC/DC current: 1000A
Resistance: 60MW.
Frequency: 100kHz.
Frequency from clamp: 400Hz.
Diode testing facility, continuity buzzer, clear display with LED backlight & data hold function, auto power âOFFâ & low power indicator, auto range facility, 4 segments bar graph.
Digital display count: 3999.
Conforms to IEC 1010, CAT II 1000V and CAT III 600V.
Pack includes: digital clamp multimeter, test probes, 3x DC1.5V AAA batteries (installed), instruction manual, protective case with carry handle,
Dimensions (W x D x H): 140 x 58 x 260mm.
Weight: 606g
Specification :
Brand : Edison
Model Number : DCM070
Supplier Part No. : DCM070
UNSPSC Code : 41113637
WEEE Compliant : Yes
| Weight | 1 kg |
|---|
