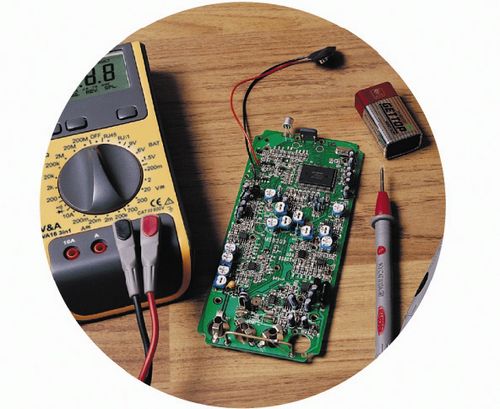

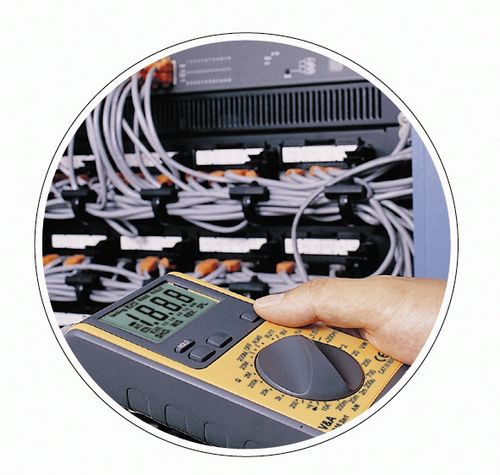

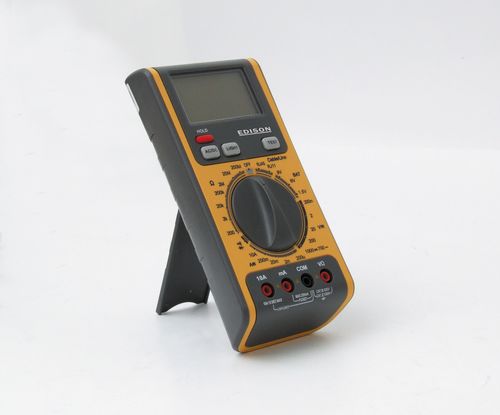

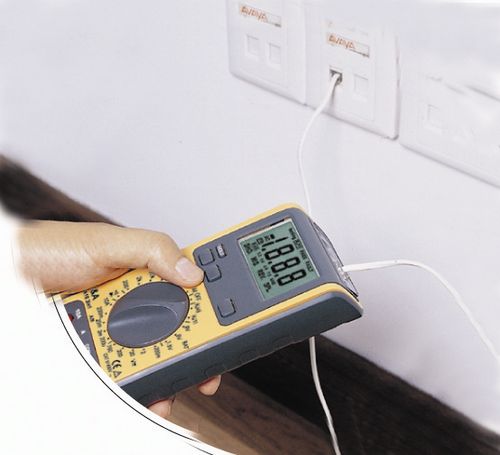

3-IN-1 MULTIMETER & NETWORK MAINTENANCE TESTER

Related products

•

  AUTO RANGE DIGI. CLAMP METER TRUE RMS 1000A AC/DC

  Edison Auto Range 1000A AC/DC Digital Clamp Meters – DCM070 True RMS

  Edison™ multimeters are an essential and versatile piece of test equipment. They are used by qualified electricians and mechanics alike to perform various essential tests and measurements on delicate electronic systems, automotive devices, mains appliances, and installations. By operating the multi position switch they can quickly and easily set to be a voltmeter, an ammeter or an ohmmeter. Within the Edison™ range of multimeters you will find direct reading multimeters and non-contact reading multimeters.

  DCM070 True RMS
  Ideal for electrical troubleshooting & testing in commercial environments. The AC/DC digital multimeter is capable of testing for the following: telephone networks, fuse connections.
  AC voltage: 750V.
  DC voltage: 1000V.
  AC/DC current: 1000A.
  Resistance: 60MW.
  Frequency: 100kHz.
  Frequency from clamp: 400Hz.
  Diode testing facility, continuity buzzer, clear display with LED backlight & data hold function, auto power ‘OFF’ & low power indicator, auto range facility, 4 segments bar graph.
  Digital display count: 3999.
  Conforms to IEC 1010, CAT II 1000V and CAT III 600V.
  Pack includes: digital clamp multimeter, test probes, 3x DC1.5V AAA batteries (installed), instruction manual, protective case with carry handle.
  Dimensions (W x D x H): 140 x 58 x 260mm.
  Weight: 606g.

  Read more
•

  AUTO RANGE HI-ACCURACY MULTIMETER – USB INTERFACE

  Edison Auto Range Digital Multimeters – DAM100

  Within the Edison™ range of multimeters you will find direct reading multimeters and non-contact reading multimeters. Ideal for electrical troubleshooting and straightforward environmental testing in residential and commercial environments.

  DAM100
  Auto Range Hi-Accuracy Digital Multimeter with USB interface, ideal for electrical troubleshooting and straightforward maintenance, initial start-up testing and R and D.
  Linear frequency: 5Hz to 200KHz.
  Logic frequency: 5Hz to 2MHz.
  Duty cycle: 5% to 95%.
  Diode testing: 0 to 2.5V.
  AC/DC voltage: 1000V.
  AC/DC current: 10A.
  Resistance: 50MW.
  Capacitance: 5000mF.
  Relative measurement function. Clear display with LED back light and data hold function auto power ‘OFF’ and low power indicator.
  Digital display count: 50000.
  Pack includes: digital multimeter, test probes, clamp-on trat leads, USB interface connection, CD rom ‘PC-LINK’ software (compatible with Windows 98ME, 2000, NT or XP), 6x 1.5V AAA batteries (installed), instruction manual, protective case with carry strap.
  PC-LINK software features: measure graph, measure data record, simulate LCD display, analogue dial plate display, measure max/min display, sampling interva, graph export, measure data save.
  Dimensions (W x D x H): 178 x 65 x 255mm.

  Read more
•

  ‘SMILE DIAL’ PLUNGER TYPE DIAL GAUGE JEWELLED

  Kennedy Smile Dial Gauges Plunger Type

  58mm (21/4”) Diameter Dial
  Matt finish chromed housings and black oxidised limit hands. Jewelled. and 5/16” diameter stem. Fitted with 1/4” inside diameter centre back lug and 5/16” diameter stem. Manufactured to BS 907.

  Read more
•

  REPLACEMENT PROBE FOR EDI5163500K

  Replacement Probe

  Replacement probe for Edison OJM826 Open Jaw Digital Multimeter (EDI-516-9040K)

  Read more
