A1216M SCLCR 06 BORING BAR THRU COOLANT
Rp2.331.000
Indexa Screw-on Boring Bars (Through Coolant) – SCLCR

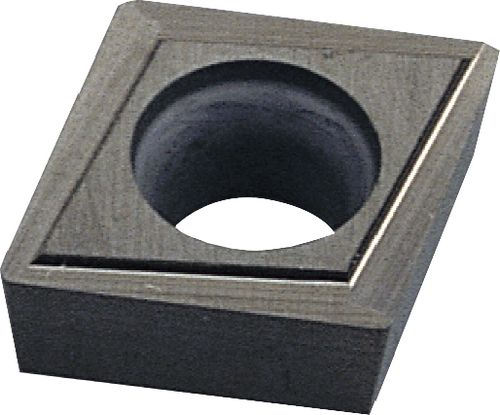

95° approach. Uses CCMT 06 inserts.
QBC-06 Quad Bore Holder Set â SCLC R (IND-106-9980K)
A set featuring 4 SCLCR 95° approach screw-on boring bars in 6, 8, 10 and 12mm diameter, the bars use a CCMT 06 insert. For small diameter bores on manual and CNC lathes.
2 in stock
SKU : IND1067536K
Indexa Screw-on Boring Bars (Through Coolant) – SCLCR
95° approach. Uses CCMT 06 inserts.
QBC-06 Quad Bore Holder Set â SCLC R (IND-106-9980K)
A set featuring 4 SCLCR 95° approach screw-on boring bars in 6, 8, 10 and 12mm diameter, the bars use a CCMT 06 insert. For small diameter bores on manual and CNC lathes.

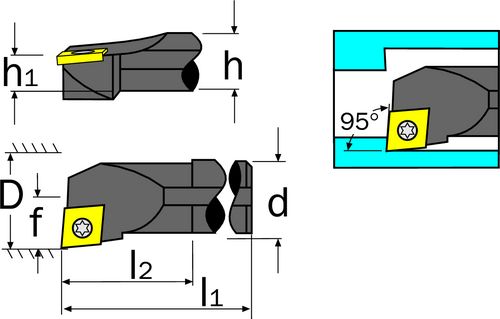

Specification :
Brand : Indexa
Dimensions dg7 : 12 | mm
Dimensions f : 9
Dimensions h : 15
Dimensions l1 : 150
Dimensions l2 : 50
Dmin : 18
eCl@ss Code : 28039190
ISO Ref : A01216M SCLCR
Overall Weight : 0.185
Supplier Part No. : A1216M SCLCR 06
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
