A1012K SCLCR 06 BORING BAR THRU COOLANT
Rp2.331.000
Indexa Screw-on Boring Bars (Through Coolant) – SCLCR

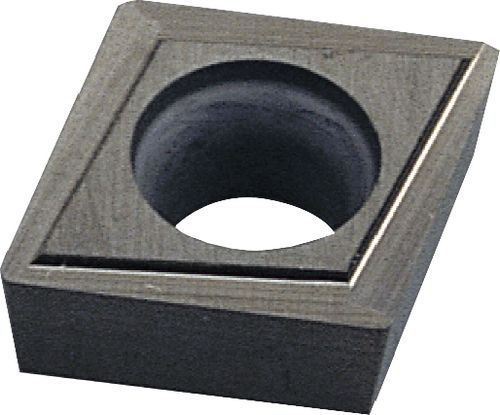

95° approach. Uses CCMT 06 inserts.
QBC-06 Quad Bore Holder Set â SCLC R (IND-106-9980K)
A set featuring 4 SCLCR 95° approach screw-on boring bars in 6, 8, 10 and 12mm diameter, the bars use a CCMT 06 insert. For small diameter bores on manual and CNC lathes.
Out of stock
SKU : IND1067534K
Indexa Screw-on Boring Bars (Through Coolant) – SCLCR
95° approach. Uses CCMT 06 inserts.
QBC-06 Quad Bore Holder Set â SCLC R (IND-106-9980K)
A set featuring 4 SCLCR 95° approach screw-on boring bars in 6, 8, 10 and 12mm diameter, the bars use a CCMT 06 insert. For small diameter bores on manual and CNC lathes.

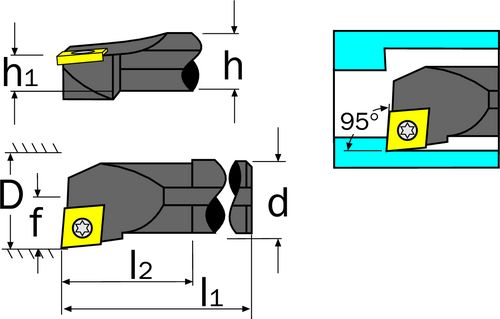

Specification :
Brand : Indexa
Dimensions dg7 : 10 | mm
Dimensions f : 7
Dimensions h : 11
Dimensions l1 : 125
Dimensions l2 : 38
Dmin : 14
eCl@ss Code : 28039190
ISO Ref : A01012K SCLC
Overall Weight : 0.086
Supplier Part No. : A1012K SCLCR 06
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
