9.00mm HSS T/S DRILL
Rp189.000

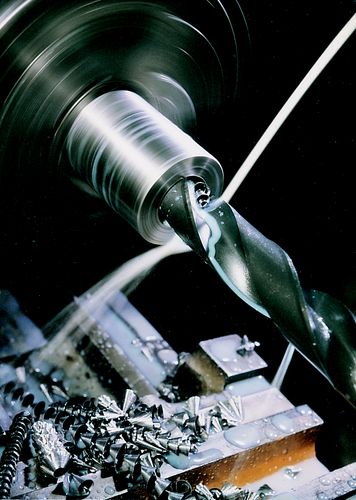

HSS Taper Shank Drills, 1 Morse Taper – Metric
To drill steels with a tensile strength up to 1.000 N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. Point angle: 118°, helix angle: normal, relief angle: normal, tolerance of diameter: h8.
Manufacturing Standard: DIN 345.
Out of stock
SKU : SHR0252706J
HSS Taper Shank Drills, 1 Morse Taper – Metric
To drill steels with a tensile strength up to 1.000 N/mm2, cast steel, grey cast iron, malleable cast iron, nickel brass and graphite. Point angle: 118°, helix angle: normal, relief angle: normal, tolerance of diameter: h8.
Manufacturing Standard: DIN 345.
Specification :
Brand : Sherwood
Diameter (mm) : 9.00
eCl@ss Code : 21010101
Flute Length (mm) : 81
Overall Length (mm) : 162
Overall Weight : 0.083
UNSPSC Code : 23241639
| Weight | 1 kg |
|---|
