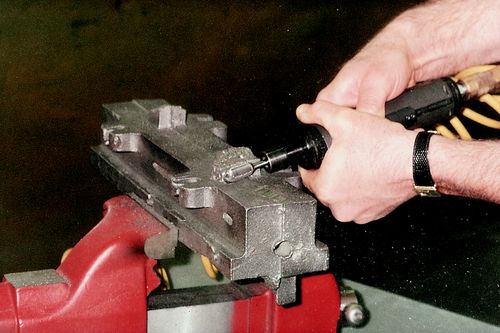

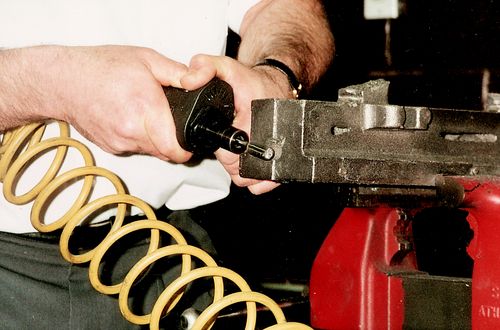

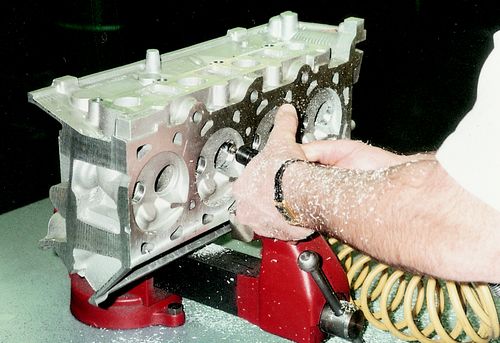

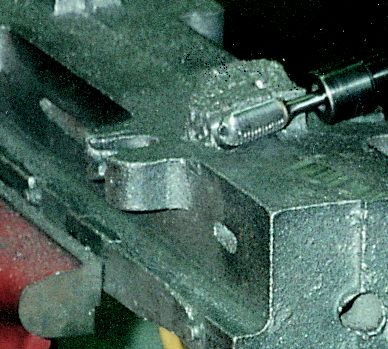

6.3×12.7mm CYL BALL NOSE BURR DOUBLE CUT
York Carbide Burrs – Cylindrical Ball Nosed
Cylindrical Ball Nosed
All sizes are nominal. Sizes marked * are 3mm shank, all others are 6mm shank.
Cut Numbers:
Cut 6 – Double Cut
Crosscut and double cut to improve control and chipbreaks. Manufactured from high grade tungsten carbide for general-purpose use.
Cut 9 – Chipbreaker
Chipbreaker fast stock removal for improved control and reduced chips for use on hard materials, i.e. steel alloy 50RC, 60RC, carbon and cast iron.
SKU : YRK2101126K
York Carbide Burrs – Cylindrical Ball Nosed
Cylindrical Ball Nosed
All sizes are nominal. Sizes marked * are 3mm shank, all others are 6mm shank.
Cut Numbers:
Cut 6 – Double Cut
Crosscut and double cut to improve control and chipbreaks. Manufactured from high grade tungsten carbide for general-purpose use.
Cut 9 – Chipbreaker
Chipbreaker fast stock removal for improved control and reduced chips for use on hard materials, i.e. steel alloy 50RC, 60RC, carbon and cast iron.
Specification :
Brand : York Abrasives
Cut No. : 6
eCl@ss Code : 21010101
Head Size Dia. x L (mm) : 6 x 13*
UNSPSC Code : 23251706
| Weight | 1 kg |
|---|
