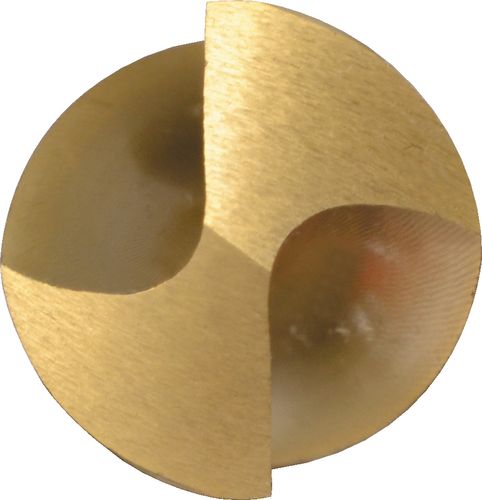

5.00mm TiN TIPPED JOBBER DRILL
Rp26.000
SwissTech HSS Straight Shank TiN Tipped Jobber Drills – Metric
Metric
Bright body with TiN coating on working part. For drilling in steel, cast steel alloyed and non-alloyed, grey cast iron, graphite and malleable cast iron. Point angle: 118°, helix angle: normal, web thickness: standard, relief angle: normal, tolerance of diameter: h8, tolerance of shank: f11. Manufactured to BS 328, DIN 338.
Out of stock
SKU : SWT1255050A
SwissTech HSS Straight Shank TiN Tipped Jobber Drills – Metric
Metric
Bright body with TiN coating on working part. For drilling in steel, cast steel alloyed and non-alloyed, grey cast iron, graphite and malleable cast iron. Point angle: 118°, helix angle: normal, web thickness: standard, relief angle: normal, tolerance of diameter: h8, tolerance of shank: f11. Manufactured to BS 328, DIN 338.
Specification :
Brand : Swiss Tech
Diameter (mm) : 5.00 | mm
eCl@ss Code : 21010101
Overall Weight : 0.009
Supplier Part No. : SWT1255050A
UNSPSC Code : 23241634
| Weight | 1 kg |
|---|
