10x20mm CYL. CARBIDE END CUT BURR CUT 3
Kennedy Carbide Burrs – Cylindrical-End Cutting
Cylindrical-End Cutting
All sizes are nominal. Sizes marked * are 3mm shank, all others are 6mm shank.
Cut Numbers:
Cut 3 – Rapid Cut

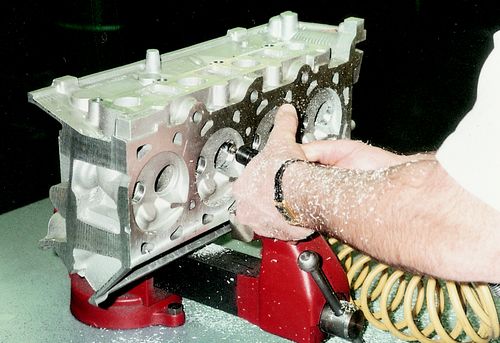

For use on softer non-ferrous and plastic materials, i.e. aluminium, fibreglass, plastics, hard rubber and zinc alloy.
Cut 9 – Chipbreaker
Chipbreaker fast stock removal for improved control and reduced chips for use on hard materials, i.e. steel alloy 50RC, 60RC, carbon and cast iron.
Out of stock
SKUÂ :Â KEN2100220K
Kennedy Carbide Burrs – Cylindrical-End Cutting
Cylindrical-End Cutting
All sizes are nominal. Sizes marked * are 3mm shank, all others are 6mm shank.
Cut Numbers:
Cut 3 – Rapid Cut
For use on softer non-ferrous and plastic materials, i.e. aluminium, fibreglass, plastics, hard rubber and zinc alloy.
Cut 9 – Chipbreaker
Chipbreaker fast stock removal for improved control and reduced chips for use on hard materials, i.e. steel alloy 50RC, 60RC, carbon and cast iron.
Specification :
Brand : Kennedy Industrial
Cut No. : 3
eCl@ss Code : 21010101
Head Size Dia. x L (mm)Â :Â 10 x 20
UNSPSC Code : 23251706
| Weight | 1 kg |
|---|
