1.80mm HEAVY DUTY COBALT+ TIN DRILL
HSS-Co Straight Shank Heavy Duty TiN Coated Drills
Heavy-duty drill used to drill steels with a tensile strength up to 1,400 N/mm2. Stainless steels, heat and acid resistant steels and phosphor bronze. TiN coating provides longer tool life. Point angle: 135°. Helix angle: normal. Web thickness: strengthened. Relief angle: normal. Tolerance of diameter: h8, Supply unit. All diameters – 1 pce. Manufactured to DIN 338 RN.
Out of stock
SKUÂ :Â SWT1250618A
HSS-Co Straight Shank Heavy Duty TiN Coated Drills
Heavy-duty drill used to drill steels with a tensile strength up to 1,400 N/mm2. Stainless steels, heat and acid resistant steels and phosphor bronze. TiN coating provides longer tool life. Point angle: 135°. Helix angle: normal. Web thickness: strengthened. Relief angle: normal. Tolerance of diameter: h8, Supply unit. All diameters – 1 pce. Manufactured to DIN 338 RN.
Specification :
Brand : Swiss Tech
Diameter (mm)Â :Â 1.80 | mm
eCl@ss Code : 21010101
Overall Weight : 0.001
Supplier Part No. : SWT1250618A
UNSPSC Code : 23241606
| Weight | 1 kg |
|---|
Related products
-

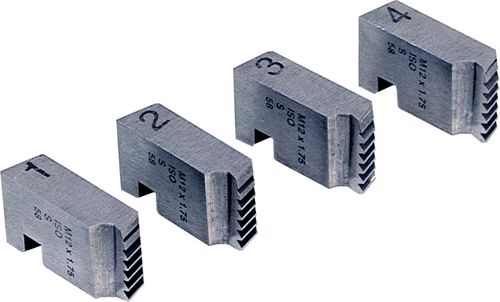

M12x1.75mm CHASER DIE 12mm D/HD TYPE S20Read moreCoventry Type Chaser Dies – ISO Metric: Throat Angle S20
Cutting takes place only on the throat and the first full tooth; the remaining threads are above centre height and act as a nut, ensuring accurate pitch. Ideal for batch work or continuous production of threaded steel bar. Coventry dies are not interchangeable. An original set of new dies must always be used together. When taken from the diehead the set of dies should be retained in its box until required again.
Throat Angles
20° for general work and soft steels – supplied as standard.
33° ‘B’ type for cutting brass, available on request.Grinding Dies
Only two angles are ground on Coventry dies, the throat angle and the rake angle and in the particular case of Holozone dies only the throat angle is ground. All dies in a set must be ground on the throat at the same time and since they cannot be accurately ground by hand, a die grinding fixture must be used.Marking & Materials
Each die is marked with: diameter, pitch, type of die and gauge number. Non-standard or special dies are marked with an SD number which should be quoted when re-ordering. When a set of dies has been re-ground several times by grinding the throat angle, the height of the cutting edge rises above centre. This condition must be rectified by grinding the rake angle until the die height is correct according to the number shown on the die. -
M10x1.50mm CHASER DIE 12mm D/HD TYPE S20Read moreCoventry Type Chaser Dies – ISO Metric: Throat Angle S20
Cutting takes place only on the throat and the first full tooth; the remaining threads are above centre height and act as a nut, ensuring accurate pitch. Ideal for batch work or continuous production of threaded steel bar. Coventry dies are not interchangeable. An original set of new dies must always be used together. When taken from the diehead the set of dies should be retained in its box until required again.
Throat Angles
20° for general work and soft steels – supplied as standard.
33° ‘B’ type for cutting brass, available on request.Grinding Dies
Only two angles are ground on Coventry dies, the throat angle and the rake angle and in the particular case of Holozone dies only the throat angle is ground. All dies in a set must be ground on the throat at the same time and since they cannot be accurately ground by hand, a die grinding fixture must be used.Marking & Materials
Each die is marked with: diameter, pitch, type of die and gauge number. Non-standard or special dies are marked with an SD number which should be quoted when re-ordering. When a set of dies has been re-ground several times by grinding the throat angle, the height of the cutting edge rises above centre. This condition must be rectified by grinding the rake angle until the die height is correct according to the number shown on the die. -
M12x1.75mm CHASER DIE 20mm D/HD TYPE S20Read moreCoventry Type Chaser Dies – ISO Metric: Throat Angle S20
Cutting takes place only on the throat and the first full tooth; the remaining threads are above centre height and act as a nut, ensuring accurate pitch. Ideal for batch work or continuous production of threaded steel bar. Coventry dies are not interchangeable. An original set of new dies must always be used together. When taken from the diehead the set of dies should be retained in its box until required again.
Throat Angles
20° for general work and soft steels – supplied as standard.
33° ‘B’ type for cutting brass, available on request.Grinding Dies
Only two angles are ground on Coventry dies, the throat angle and the rake angle and in the particular case of Holozone dies only the throat angle is ground. All dies in a set must be ground on the throat at the same time and since they cannot be accurately ground by hand, a die grinding fixture must be used.Marking & Materials
Each die is marked with: diameter, pitch, type of die and gauge number. Non-standard or special dies are marked with an SD number which should be quoted when re-ordering. When a set of dies has been re-ground several times by grinding the throat angle, the height of the cutting edge rises above centre. This condition must be rectified by grinding the rake angle until the die height is correct according to the number shown on the die. -
M24x3.00mm CHASER DIE 25mm D/HD TYPE S20Read moreCoventry Type Chaser Dies – ISO Metric: Throat Angle S20
Cutting takes place only on the throat and the first full tooth; the remaining threads are above centre height and act as a nut, ensuring accurate pitch. Ideal for batch work or continuous production of threaded steel bar. Coventry dies are not interchangeable. An original set of new dies must always be used together. When taken from the diehead the set of dies should be retained in its box until required again.
Throat Angles
20° for general work and soft steels – supplied as standard.
33° ‘B’ type for cutting brass, available on request.Grinding Dies
Only two angles are ground on Coventry dies, the throat angle and the rake angle and in the particular case of Holozone dies only the throat angle is ground. All dies in a set must be ground on the throat at the same time and since they cannot be accurately ground by hand, a die grinding fixture must be used.Marking & Materials
Each die is marked with: diameter, pitch, type of die and gauge number. Non-standard or special dies are marked with an SD number which should be quoted when re-ordering. When a set of dies has been re-ground several times by grinding the throat angle, the height of the cutting edge rises above centre. This condition must be rectified by grinding the rake angle until the die height is correct according to the number shown on the die.
