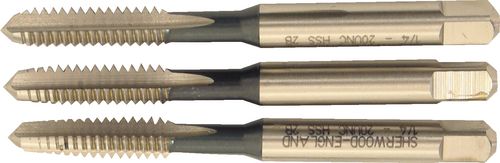

1/4″x20 UNC HSS GT STR. FLUTE TAP SET
Rp686.000
UNC (Unified Coarse)
HSS Ground Thread Taps
Sets of Three
1 each, taper, second and plug lead.
Thread Forms are Class 2 medium fit tolerance.
1 in stock
SKU : SHR0850850D
UNC (Unified Coarse)
HSS Ground Thread Taps
Sets of Three
1 each, taper, second and plug lead.
Thread Forms are Class 2 medium fit tolerance.
Specification :
Brand : Sherwood
eCl@ss Code : 21010210
Overall Length : 66.0
Shank Diameter : 6.30
Size – Pitch : 1/4″ x 20
Square A/F : 5.00
Tap Drill Size : 5.10
Thread Length : 19.0
UNSPSC Code : 27112806
| Weight | 1 kg |
|---|
