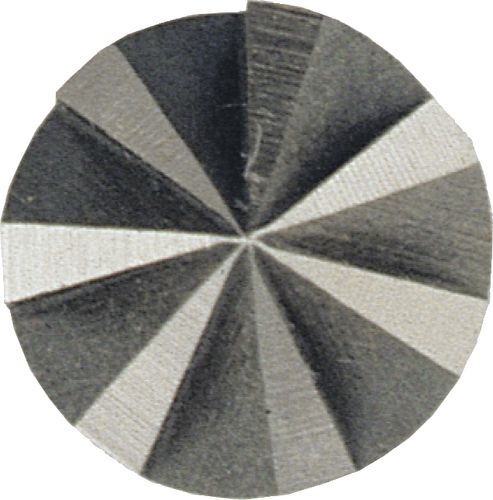

1/2″ x 90DEG HSS ROSE MULTI-FLUTE S/S COUNTERSINK
Rp323.000
Kennedy HSS-Co 5% Multi Flute Rose Pattern Straight Shank Countersinks
Manufactured from M35 HSS and used for the deburring and chamfering of most metals and plastics. Straight shank. Manufactured to BS328:Part 5:1983.
Rose Pattern
Inclusive angle 90°. Overall length: 52mm.
Out of stock
SKU : KEN0202060K
Kennedy HSS-Co 5% Multi Flute Rose Pattern Straight Shank Countersinks
Manufactured from M35 HSS and used for the deburring and chamfering of most metals and plastics. Straight shank. Manufactured to BS328:Part 5:1983.
Rose Pattern
Inclusive angle 90°. Overall length: 52mm.
Specification :
Brand : Kennedy Industrial
Cutting Diameter : 12.7mm
eCl@ss Code : 21010101
Overall Depth : 15
Overall Length : 55
Overall Weight : 0.013
Overall Width : 15
Shank Diameter : 4.8mm
UNSPSC Code : 23241603
| Weight | 1 kg |
|---|
