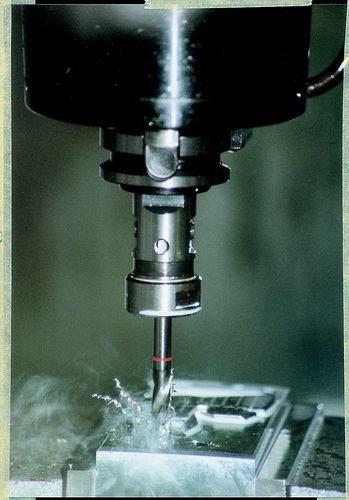

M12x1.75 OR. SP/PT 376 HSS-PM NIT+OX TAP
HSS ‘Orange Ring’ Taps
Spiral Point/Gun Nose –
HSS-PM Nitride & Oxide Finish
For through holes.
Taper lead to DIN form B
(3.5 x P to 5.5 x P).
Tapping tolerance to 6HX.
ISO Metric Coarse
Suitable for the following Material Groups;
4.3
Titanium alloys of a hard and very hard to machine nature.
5.1
Heat resistant super alloys including iron based high temperature alloys.
5.2
Heat resistant super alloys, cobalt or nickel based hard to very hard to machine
Out of stock
SKU : SWT1855533N
HSS ‘Orange Ring’ Taps
Spiral Point/Gun Nose –
HSS-PM Nitride & Oxide Finish
For through holes.
Taper lead to DIN form B
(3.5 x P to 5.5 x P).
Tapping tolerance to 6HX.
ISO Metric Coarse
Suitable for the following Material Groups;
4.3
Titanium alloys of a hard and very hard to machine nature.
5.1
Heat resistant super alloys including iron based high temperature alloys.
5.2
Heat resistant super alloys, cobalt or nickel based hard to very hard to machine
Specification :
Brand : Swiss Tech
eCl@ss Code : 21010210
Overall Length (mm) : 110.0
Shank Diameter (mm) : 9.0
Size – Pitch (mm) : M12.0 x 1.75
Square A/F : 7.0
Thread Length : 29.0
UNSPSC Code : 27112806
Weight each : 61g
| Weight | 1 kg |
|---|
