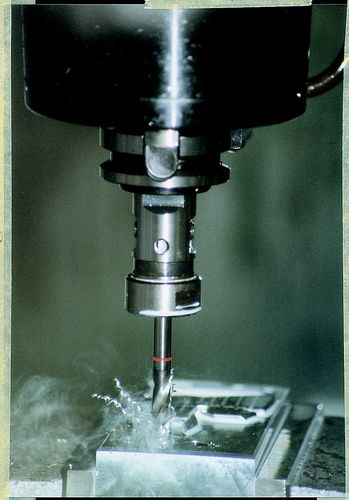

M3x0.5 ORANGE SP/FL 371 HSS-PM NIT+OX TAP
HSS âOrange Ringâ Taps
Spiral Flute – HSS-PM Nitride & Oxide Finish
For blind holes. Taper lead to DIN form C.
This tap has the special
chamfer lead of (3 x P).
Tapping tolerance: spiral flute to 6H.
ISO Metric Coarse Helix angle 40°. Tapping depth 2.5 x D.
Out of stock
SKU : SWT1856009N
HSS âOrange Ringâ Taps
Spiral Flute – HSS-PM Nitride & Oxide Finish
For blind holes. Taper lead to DIN form C.
This tap has the special
chamfer lead of (3 x P).
Tapping tolerance: spiral flute to 6H.
ISO Metric Coarse Helix angle 40°. Tapping depth 2.5 x D.
Specification :
Brand : Swiss Tech
eCl@ss Code : 21010210
Overall Length (mm) : 56.0
Shank Diameter (mm) : 3.5
Size – Pitch (mm) : M3.0 x 0.50
Square A/F : 2.7
Thread Length : 5.0
UNSPSC Code : 27112806
Weight each : 5g
| Weight | 1 kg |
|---|
