TRADITIONAL TAP WRENCH & DIE STOCK SET 5-PCE

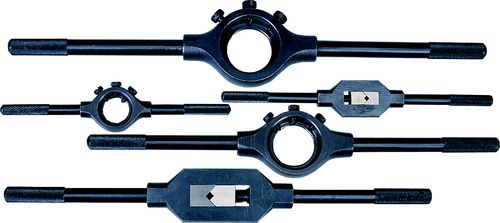

Kennedy Tap Wrench & Diestock Set
Contents
Diestocks: 1â x 13/16â,1â x 1â, 1â x 15/16â.
Tap wrenches (square size): 1 x 2.8 – 5.0mm and 1 x 4.0 – 10.0mm.
Out of stock
SKU : KEN5188500K
Kennedy Tap Wrench & Diestock Set
Contents
Diestocks: 1â x 13/16â,1â x 1â, 1â x 15/16â.
Tap wrenches (square size): 1 x 2.8 – 5.0mm and 1 x 4.0 – 10.0mm.
Specification :
Brand : Kennedy Industrial
eCl@ss Code : 21010200
No. of Pieces : 5
Overall Depth : 25
Overall Length : 340
Overall Weight : 1.22
Overall Width : 190
UNSPSC Code : 27111722
Weight each : 1150g
| Weight | 1 kg |
|---|
