SVVBN 3225P16 EXTERNAL TOOLHOLDER
Indexa Screw-On External Toolholders – SVVB N

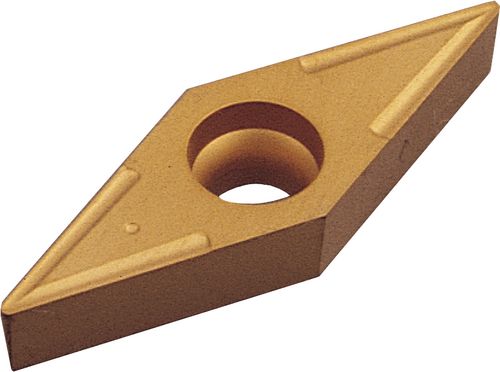

72.5° approach for 5° positive 35° rhombic inserts.
SKU : IND1066120K
Indexa Screw-On External Toolholders – SVVB N
72.5° approach for 5° positive 35° rhombic inserts.
Specification :
Brand : Indexa
Designation Svvb…. : N 3225P

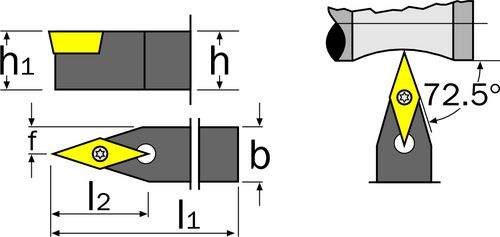

Dimensions b : 25
Dimensions f : 13.1
Dimensions h=h1 : 32
Dimensions l1 : 170
Dimensions l2 : 28
eCl@ss Code : 28039190
Overall Weight : 0.93
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
