SVVBN 2525M16 EXTERNAL TOOLHOLDER
Rp2.096.000
Indexa Screw-On External Toolholders – SVVB N

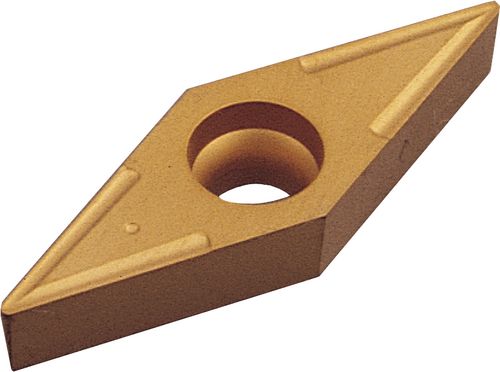

72.5° approach for 5° positive 35° rhombic inserts.
Out of stock
SKU : IND1066100K
Indexa Screw-On External Toolholders – SVVB N
72.5° approach for 5° positive 35° rhombic inserts.
Specification :
Brand : Indexa

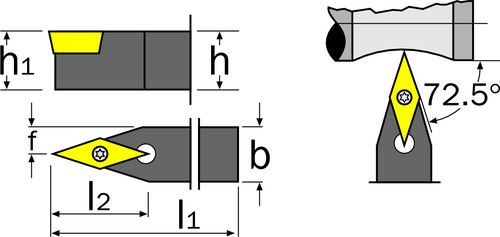

Designation Svvb…. : N 2525M
Dimensions b : 25
Dimensions f : 13.1
Dimensions h=h1 : 25
Dimensions l1 : 150
Dimensions l2 : 28
eCl@ss Code : 28039190
Overall Weight : 0.635
Supplier Part No. : 106-610
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
