SVLBR 2020K16 EXTERNAL TOOLHOLDER
Rp1.856.000
Indexa Screw-On External Toolholders – SVLB R/L

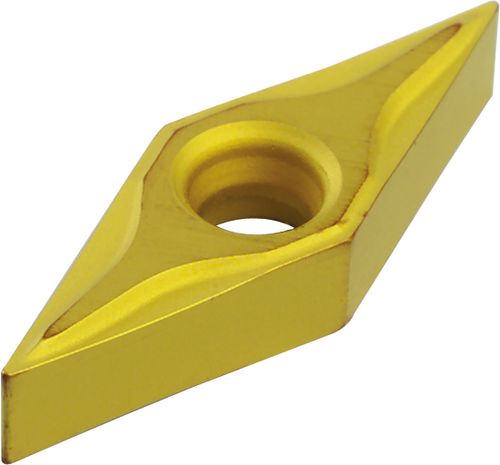

95° approach for 5° positive 35° rhombic inserts.
Out of stock
SKU : IND1065940K
Indexa Screw-On External Toolholders – SVLB R/L
95° approach for 5° positive 35° rhombic inserts.
Specification :
Brand : Indexa
Designation SVLB…. : R 2020K

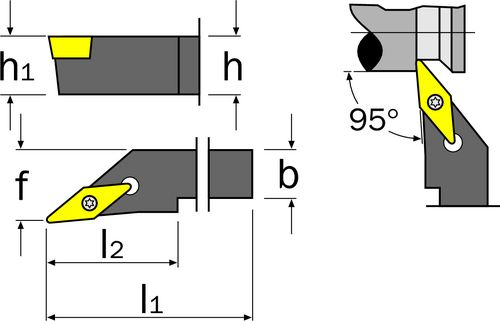

Dimensions b : 20
Dimensions f : 25
Dimensions h=h1 : 20
Dimensions l1 : 125
Dimensions l2 : 42
eCl@ss Code : 28039190
Overall Weight : 0.335
Supplier Part No. : 106-594
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
