SVJNR 2020K12 EXTERNAL TOOLHOLDER
Rp2.143.000
Indexa Screw-On External Toolholders – SVJN R/L

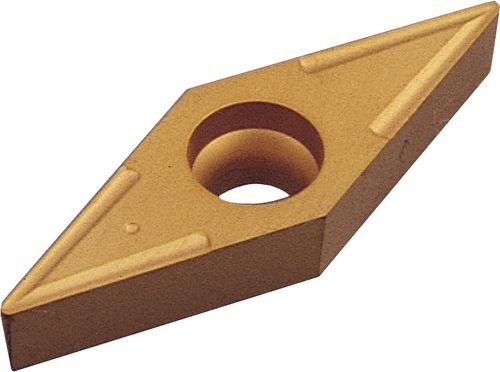

93° approach for 35° negative rhombic inserts.
Out of stock
SKU : IND1065830K
Indexa Screw-On External Toolholders – SVJN R/L
93° approach for 35° negative rhombic inserts.
Specification :
Brand : Indexa

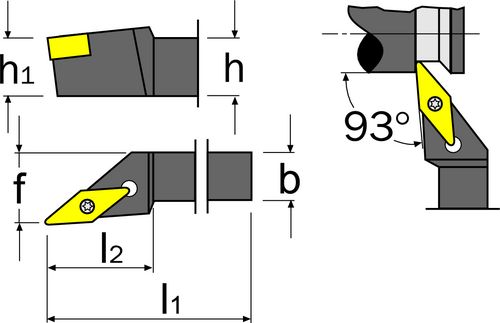

Designation SVJN…. : R 2020K
Dimensions b : 20
Dimensions f : 25
Dimensions h=h1 : 20
Dimensions l1 : 125
Dimensions l2 : 22
eCl@ss Code : 28039190
Overall Weight : 0.35
UNSPSC Code : 23242106
| Weight | 1 kg |
|---|
